Installation [02/2014 - ]: Procedure

INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER

Connect the connector to the tire pressure warning ECU and receiver.

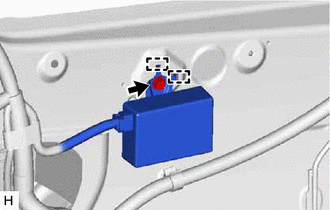

Engage the 2 hooks to temporarily install the tire pressure warning ECU and receiver.

GTY431333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the bolt.
Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 2
REGISTER TRANSMITTER ID
Refer to REGISTRATION [02/2014 - ]
INSPECT TIRE PRESSURE WARNING SYSTEM
Refer to TEST MODE PROCEDURE [02/2014 - ]
PERFORM INITIALIZATION
Refer to INITIALIZATION [02/2014 - ]
