Components [02/2014 - ]: Illustration

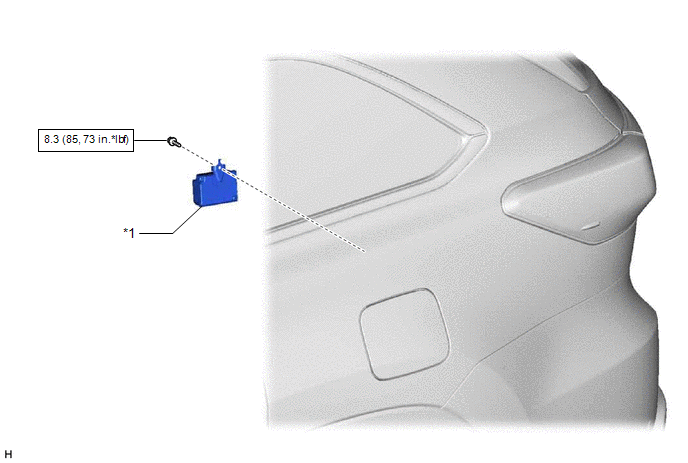

Fig 1: Tire Pressure Warning Receiver Replacement Components With Torque Specification
GTY440661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TIRE PRESSURE WARNING ECU AND RECEIVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
