Installation [02/2014 - ]: Procedure

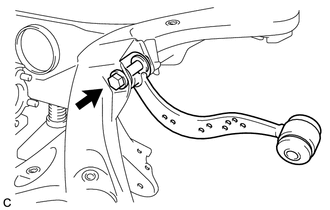

1. Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the rear of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Set the rear upper control arm assembly LH in the tightening position as shown in the illustration.

   Reference Length (A)

   24.3 mm (0.957 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Fully tighten the bolt.

   Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear speed sensor LH to the rear upper control arm assembly LH with the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   Do not twist the rear speed sensor LH when installing it.

1. Install the rear speed sensor RH to the rear upper control arm assembly RH with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   Do not twist the rear speed sensor RH when installing it.

See step  14 , or see step  14 , or see step  14
