Components [02/2014 - ]: Illustration

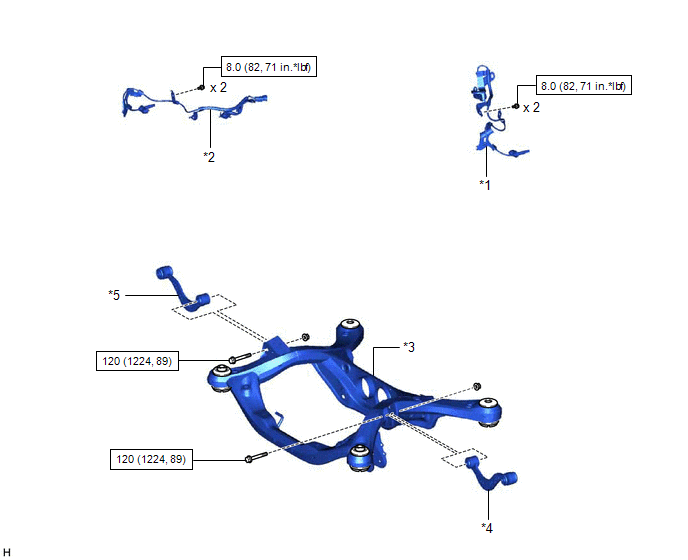

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications
GTY426656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SPEED SENSOR LH *2 REAR SPEED SENSOR RH
*3 REAR SUSPENSION MEMBER SUB-ASSEMBLY *4 REAR UPPER CONTROL ARM ASSEMBLY LH
*5 REAR UPPER CONTROL ARM ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
