Components [02/2014 - 11/2015]: Illustration

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOL AIR INTAKE DUCT SEAL	*2	INLET NO. 2 AIR CLEANER
*3	INTAKE AIR RESONATOR SUB-ASSEMBLY	*4	INVERTER TERMINAL COVER
*5	NO. 3 INVERTER BRACKET	*6	RADIATOR SIDE DEFLECTOR SEAL LH
*7	RADIATOR SIDE SEAL RH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

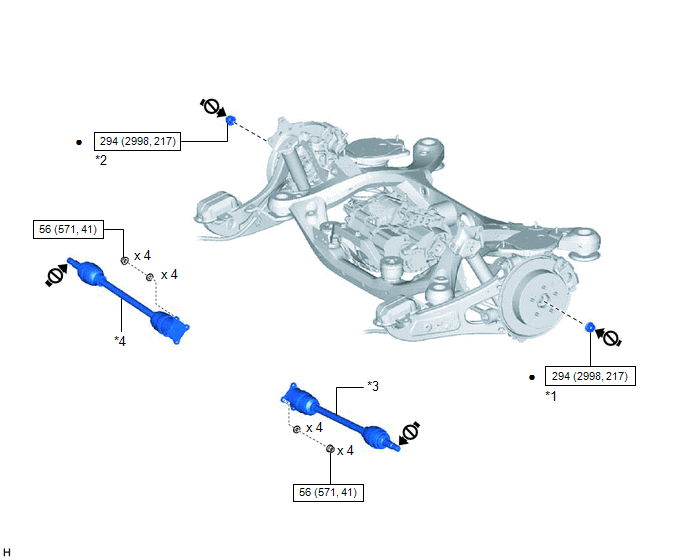

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR AXLE SHAFT NUT LH	*2	REAR AXLE SHAFT NUT RH
*3	REAR DRIVE SHAFT ASSEMBLY LH	*4	REAR DRIVE SHAFT ASSEMBLY RH
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants to the threaded parts	-	-

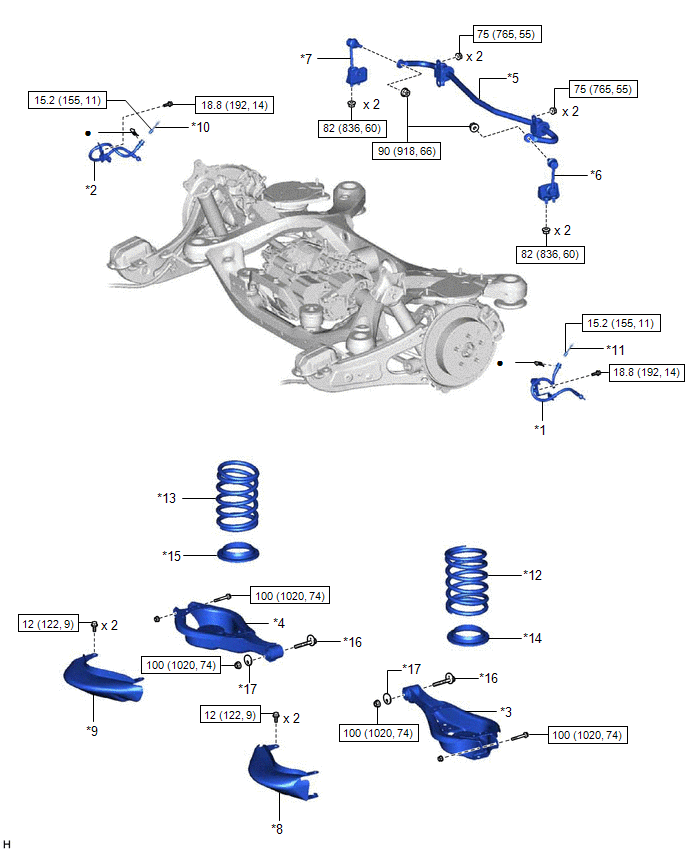

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR FLEXIBLE HOSE LH	*2	REAR FLEXIBLE HOSE RH
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	*4	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
*5	REAR STABILIZER BAR	*6	REAR STABILIZER LINK SUB-ASSEMBLY LH
*7	REAR STABILIZER LINK SUB-ASSEMBLY RH	*8	REAR SUSPENSION ARM COVER LH
*9	REAR SUSPENSION ARM COVER RH	*10	REAR NO. 3 BRAKE TUBE
*11	REAR NO. 4 BRAKE TUBE	*12	REAR COIL SPRING LH
*13	REAR COIL SPRING RH	*14	REAR LOWER COIL SPRING INSULATOR LH
*15	REAR LOWER COIL SPRING INSULATOR RH	*16	TOE ADJUST CAM SUB-ASSEMBLY
*17	NO. 2 ADJUST CAM	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

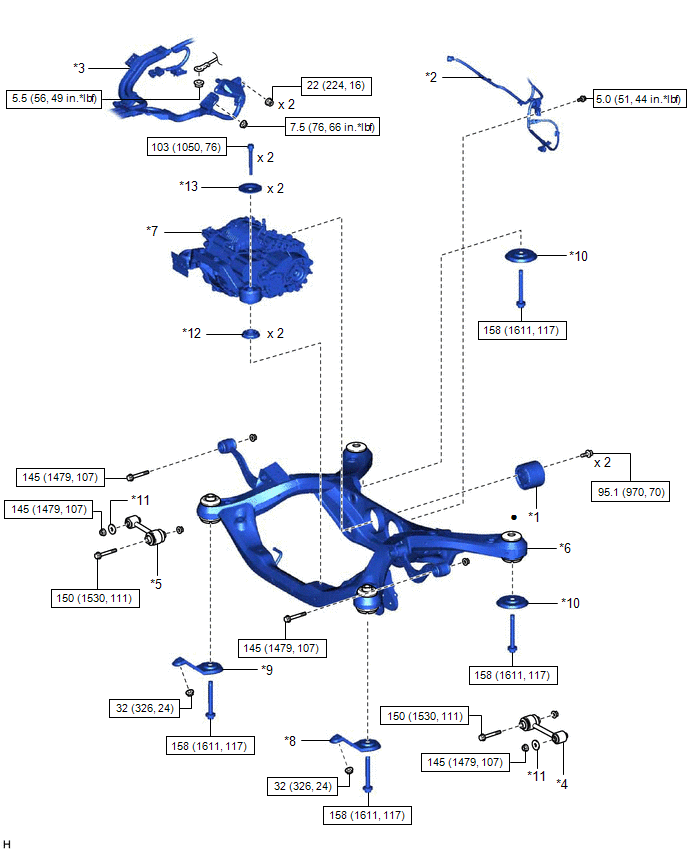

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DIFFERENTIAL MOUNT CUSHION	*2	FRAME WIRE
*3	NO. 6 FLOOR WIRE	*4	REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
*5	REAR NO. 1 SUSPENSION ARM ASSEMBLY RH	*6	REAR SUSPENSION MEMBER SUB-ASSEMBLY
*7	REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY	*8	REAR LOWER SUSPENSION MEMBER STOPPER LH
*9	REAR LOWER SUSPENSION MEMBER STOPPER RH	*10	REAR LOWER SUSPENSION BRACE
*11	SPACER	*12	LOWER SUPPORT
*13	UPPER SUPPORT	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

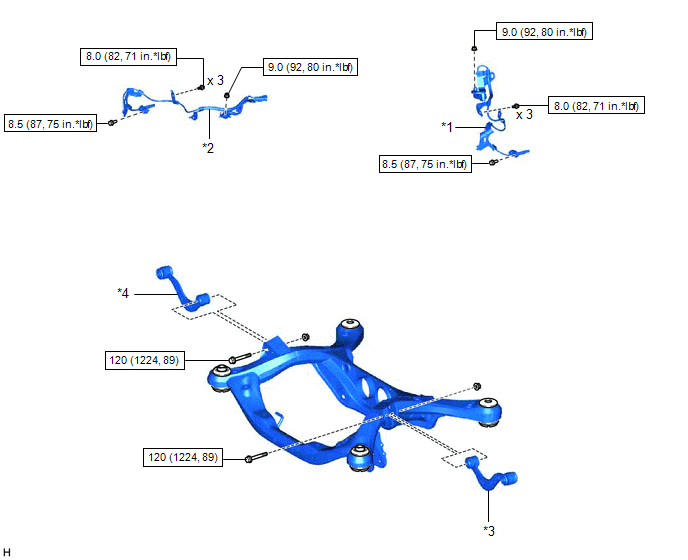

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SPEED SENSOR LH	*2	REAR SPEED SENSOR RH
*3	REAR UPPER CONTROL ARM ASSEMBLY LH	*4	REAR UPPER CONTROL ARM ASSEMBLY RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

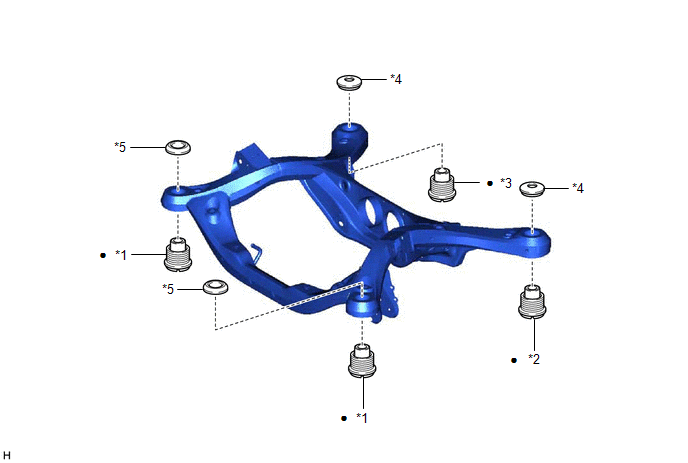

Fig 1: Rear Suspension Member Replacement Components (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION	*2	REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION LH
*3	REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION RH	*4	REAR SUSPENSION MEMBER REAR UPPER STOPPER
*5	REAR SUSPENSION MEMBER UPPER STOPPER	-	-
•	Non-reusable part	-	-

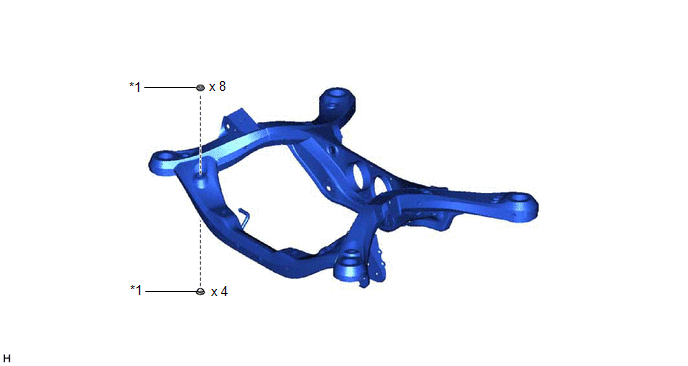

Fig 1: Rear Suspension Member Replacement Components (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

HOLE PLUG

-

-
