Components [02/2014 - ]: Illustration

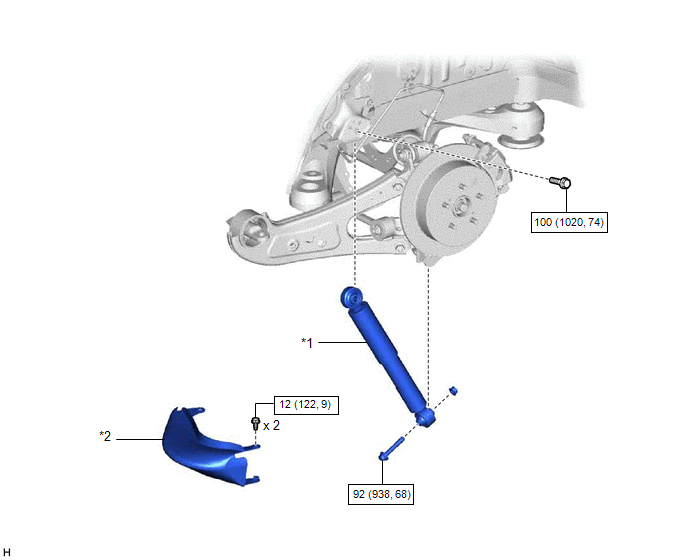

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications
GTY439482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SHOCK ABSORBER ASSEMBLY *2 REAR SUSPENSION ARM COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
