Components [11/2016 - ]: Illustration

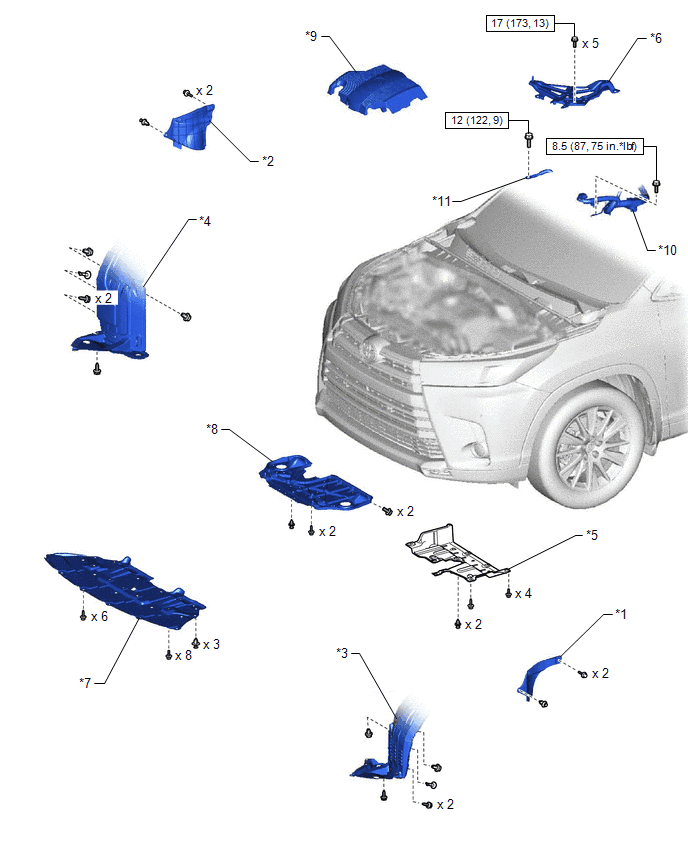

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (1 Of 6)
GTY714899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER APRON SEAL LH *2 FRONT FENDER APRON SEAL RH
*3 FRONT FENDER LINER LH *4 FRONT FENDER LINER RH
*5 FRONT FLOOR COVER LH *6 INVERTER TRAY BRACKET SUB-ASSEMBLY
*7 NO. 1 ENGINE UNDER COVER *8 NO. 2 ENGINE UNDER COVER
*9 V-BANK COVER SUB-ASSEMBLY *10 ENGINE WIRE
*11 NO. 3 EARTH WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

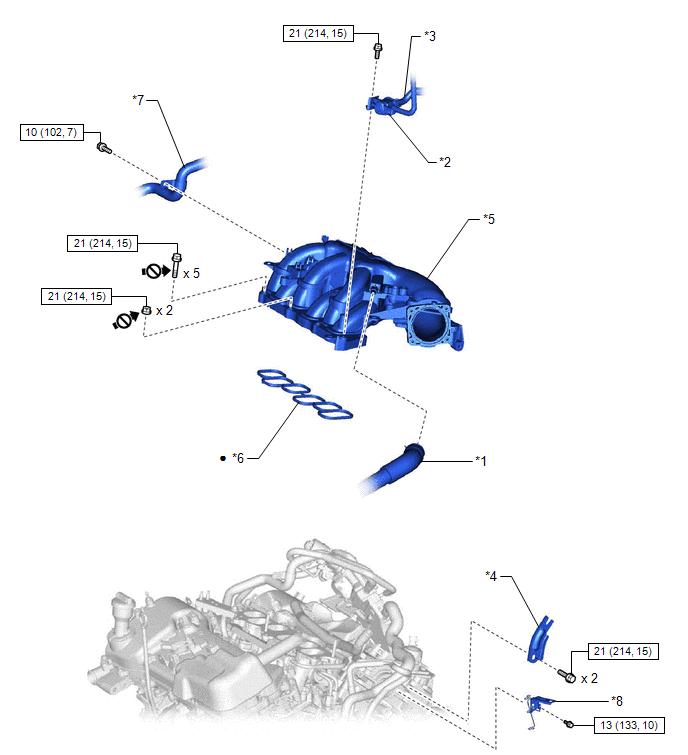

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (2 Of 6)
GTY712155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VENTILATION HOSE *2 PURGE VALVE (PURGE VSV)
*3 NO. 1 FUEL VAPOR FEED HOSE *4 NO. 2 SURGE TANK STAY
*5 INTAKE AIR SURGE TANK ASSEMBLY *6 AIR SURGE TANK TO INTAKE MANIFOLD GASKET
*7 WATER HOSE CLAMP *8 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

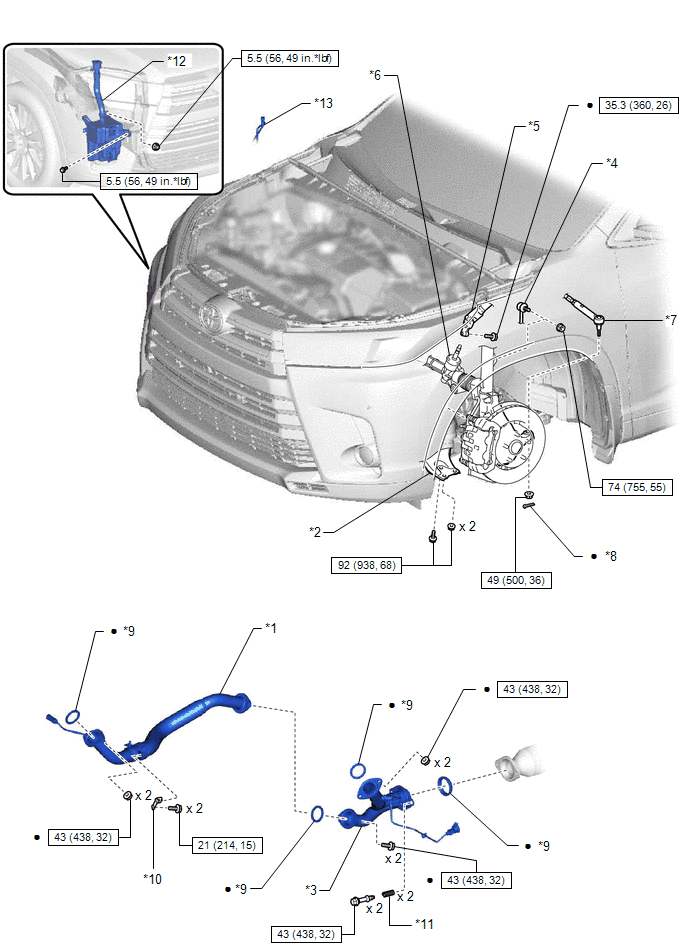

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (3 Of 6)
GTY692422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE ASSEMBLY *2 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
*3 FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY *4 FRONT STABILIZER LINK ASSEMBLY LH
*5 STEERING INTERMEDIATE SHAFT ASSEMBLY *6 STEERING LINK ASSEMBLY
*7 TIE ROD ASSEMBLY LH *8 COTTER PIN
*9 GASKET *10 EXHAUST PIPE SUPPORT BRACKET
*11 COMPRESSION SPRING *12 WINDSHIELD WASHER JAR ASSEMBLY
*13 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

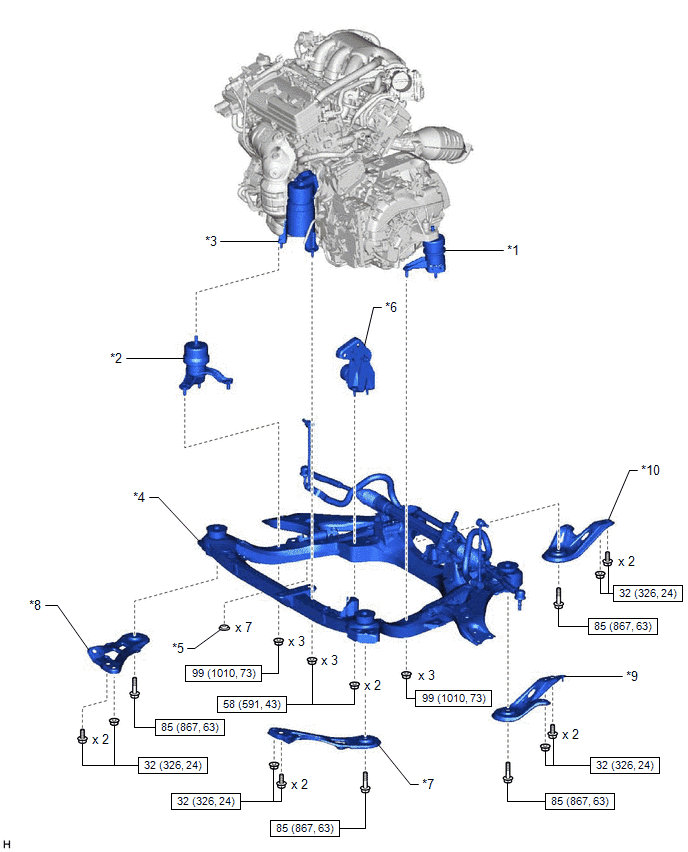

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (4 Of 6)
GTY692468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE MOUNTING INSULATOR LH *2 ENGINE MOUNTING INSULATOR RH
*3 FRONT ENGINE MOUNTING INSULATOR ASSEMBLY *4 FRONT FRAME ASSEMBLY
*5 HOLE PLUG *6 REAR ENGINE MOUNTING INSULATOR ASSEMBLY
*7 FRAME SIDE RAIL PLATE LH *8 FRAME SIDE RAIL PLATE RH
*9 FRONT SUSPENSION MEMBER REAR BRACE LH *10 FRONT SUSPENSION MEMBER REAR BRACE RH
N*m (kgf*cm, ft.*lbf): Specified torque - -

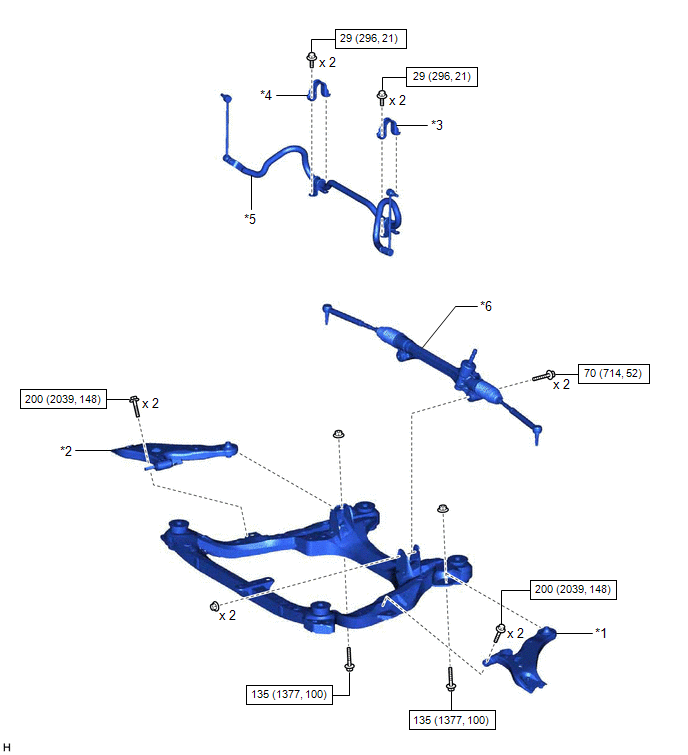

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (5 Of 6)
GTY734516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH *2 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
*3 FRONT NO. 1 STABILIZER BRACKET LH *4 FRONT NO. 1 STABILIZER BRACKET RH
*5 FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY *6 STEERING LINK ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (6 Of 6)
GTY449918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FRAME ASSEMBLY *2 FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION
*3 FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER *4 FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH
*5 FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION RH *6 FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
*7 FRONT SUSPENSION MEMBER DYNAMIC DAMPER *8 HOLE PLUG
*9 NO. 2 FRAME CROSSMEMBER DYNAMIC DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
