Components [02/2014 - 11/2016]: Illustration

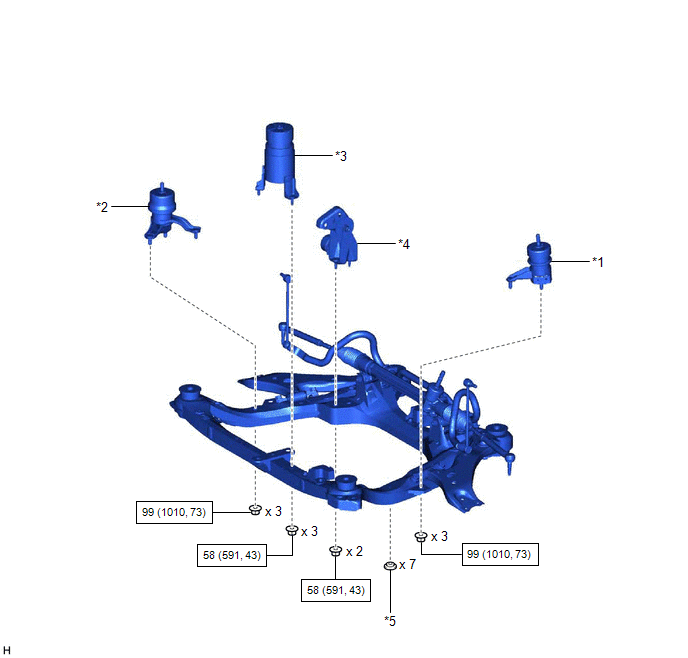

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE MOUNTING INSULATOR LH	*2	ENGINE MOUNTING INSULATOR RH
*3	FRONT ENGINE MOUNTING INSULATOR	*4	REAR ENGINE MOUNTING INSULATOR ASSEMBLY
*5	HOLE PLUG	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH	*2	FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
*3	FRONT NO. 1 STABILIZER BRACKET LH	*4	FRONT NO. 1 STABILIZER BRACKET RH
*5	FRONT STABILIZER BAR	*6	STEERING LINK ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

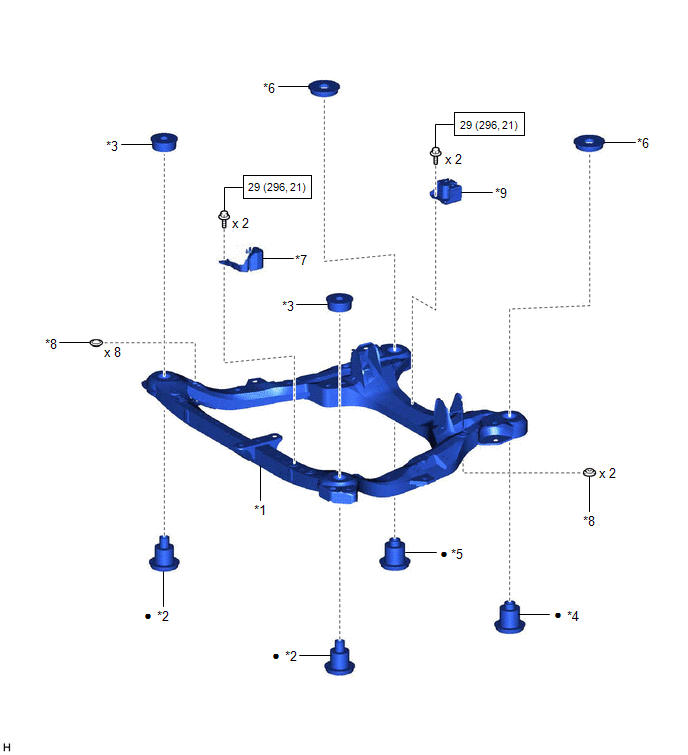

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FRAME ASSEMBLY	*2	FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION
*3	FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER	*4	FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH
*5	FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION RH	*6	FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
*7	FRONT SUSPENSION MEMBER DYNAMIC DAMPER	*8	HOLE PLUG
*9	NO. 2 FRAME CROSSMEMBER DYNAMIC DAMPER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
