Components [11/2016 - ]: Illustration

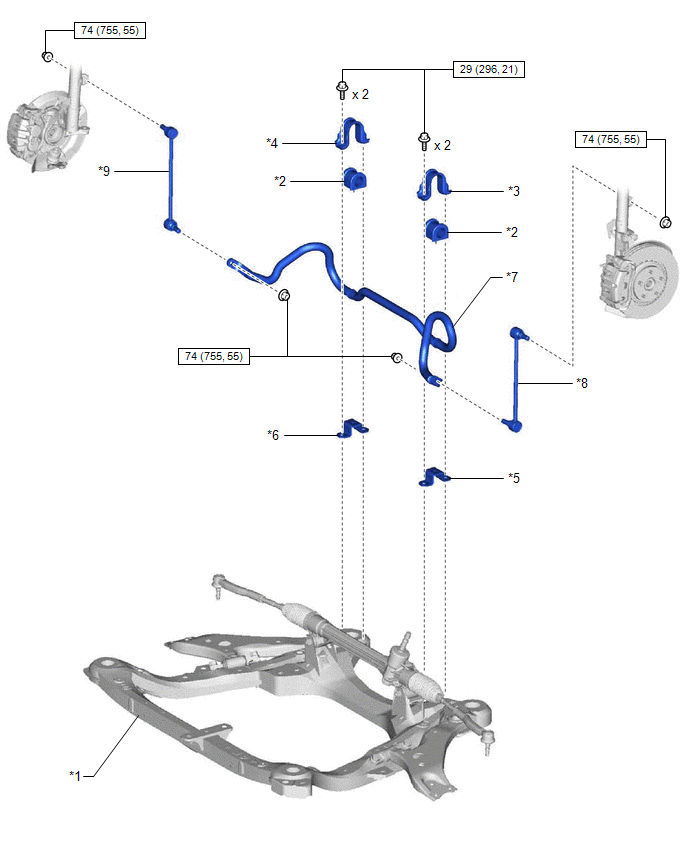

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
GTY687925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FRAME ASSEMBLY *2 FRONT NO. 1 STABILIZER BAR BUSHING
*3 FRONT NO. 1 STABILIZER BRACKET LH *4 FRONT NO. 1 STABILIZER BRACKET RH
*5 FRONT NO. 2 STABILIZER BRACKET LH *6 FRONT NO. 2 STABILIZER BRACKET RH
*7 FRONT STABILIZER BAR *8 FRONT STABILIZER LINK ASSEMBLY LH
*9 FRONT STABILIZER LINK ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
