Components [02/2014 - 11/2016]: Illustration

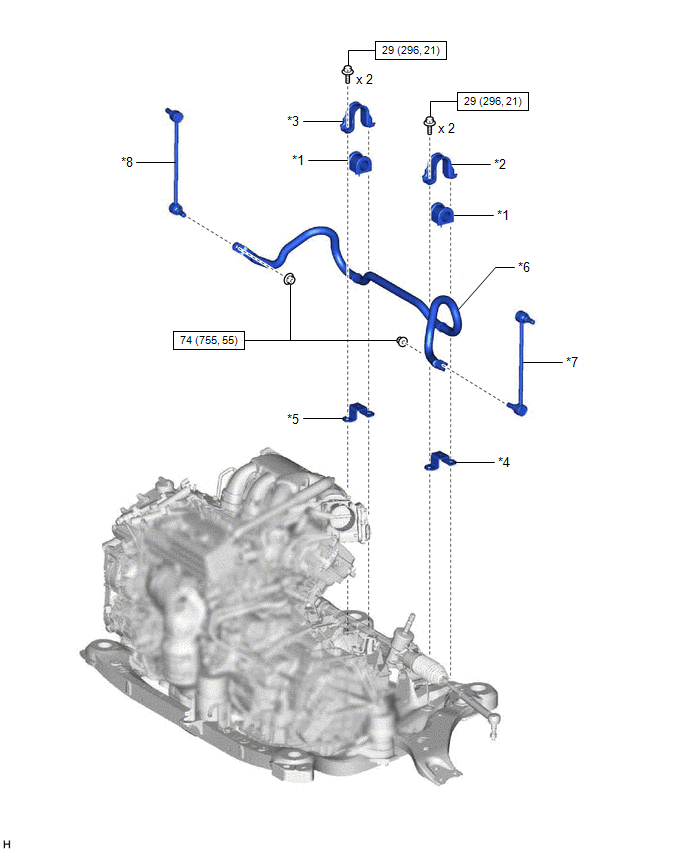

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT NO. 1 STABILIZER BAR BUSHING	*2	FRONT NO. 1 STABILIZER BRACKET LH
*3	FRONT NO. 1 STABILIZER BRACKET RH	*4	FRONT NO. 2 STABILIZER BRACKET LH
*5	FRONT NO. 2 STABILIZER BRACKET RH	*6	FRONT STABILIZER BAR
*7	FRONT STABILIZER LINK ASSEMBLY LH	*8	FRONT STABILIZER LINK ASSEMBLY RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
