Components [11/2016 - ]: Illustration

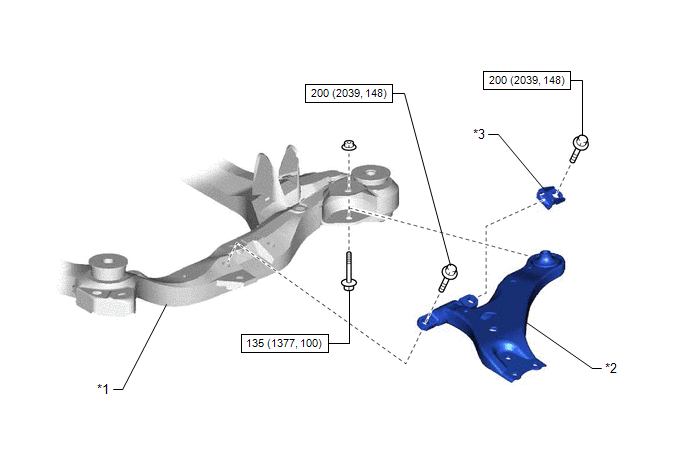

Fig 1: Front Lower Suspension Arm Replacement Component With Torque Specifications
GTY688425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FRAME ASSEMBLY *2 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
*3 FRONT LOWER ARM BUSHING STOPPER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
