Steering Wheel Does Not Heat Up When Heated Steering Wheel Switch Is Pressed [02/2014 - ]: Wiring Diagram

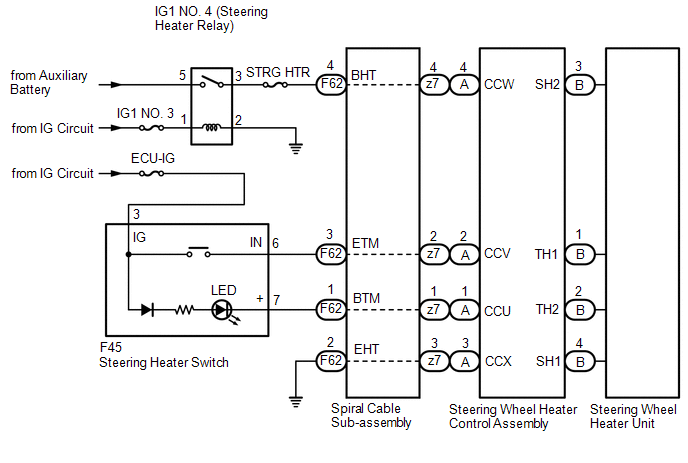

Fig 1: Heated Steering Wheel System Wiring Diagram
GTY687105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
