Parts Location [02/2014 - ]: Illustration

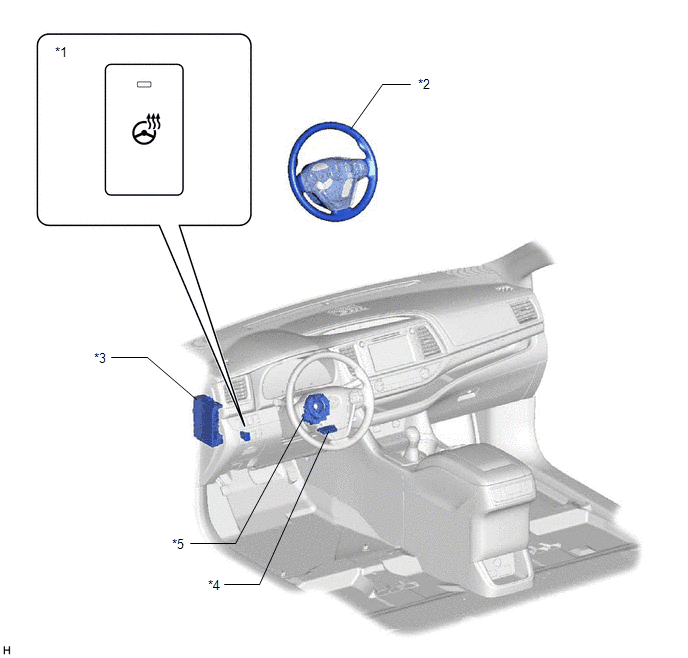

Fig 1: Heated Steering Wheel System Parts Component (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING HEATER SWITCH	*2	STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE - ECU-IG FUSE	*4	STEERING WHEEL HEATER CONTROL ASSEMBLY
*5	SPIRAL CABLE SUB-ASSEMBLY	-	-

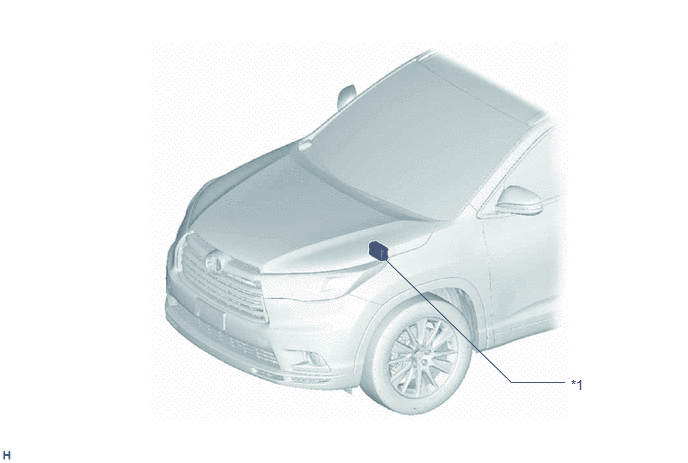

Fig 1: Heated Steering Wheel System Parts Components (2 Of 2)

NO. 2 ENGINE ROOM RELAY BLOCK
- IG1 NO. 4 RELAY (STEERING HEATER RELAY)
- STRG HTR FUSE
