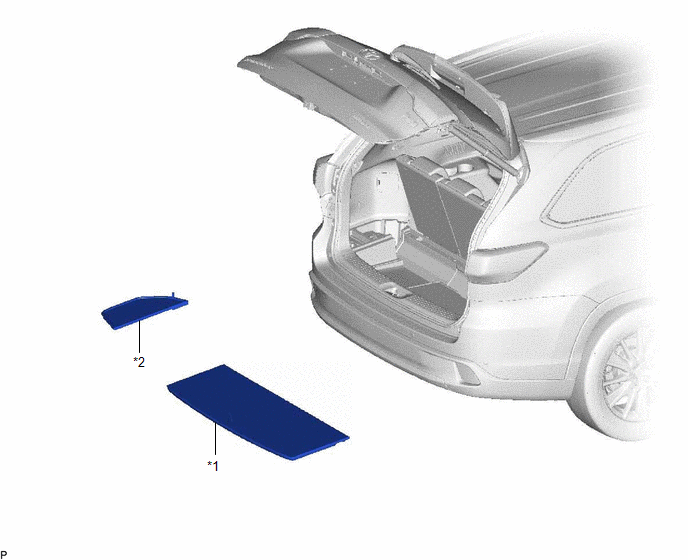

Components [02/2014 - 11/2016]: Illustration
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |

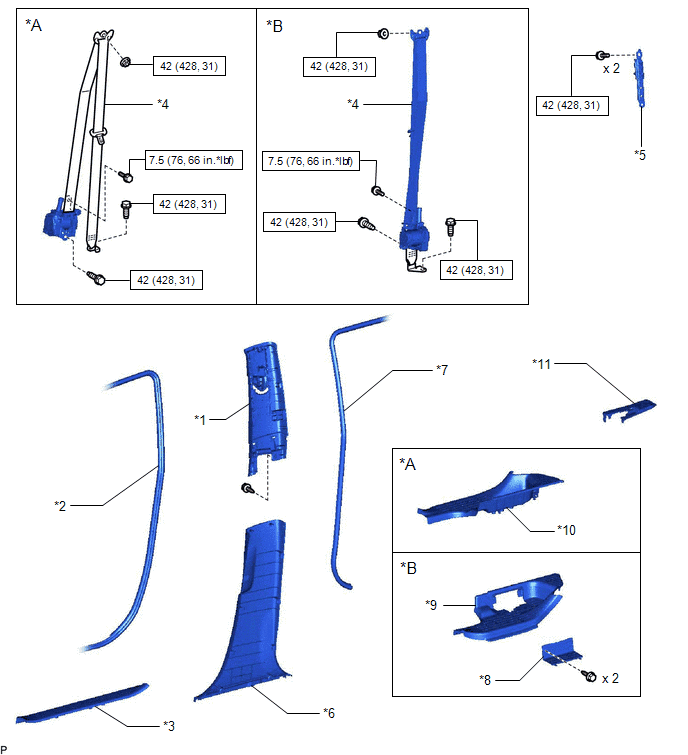

Fig 1: Front Seat Outer Belt Assembly With Pretensioner Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *A | for RH Side | *B | for LH Side |
| *1 | CENTER PILLAR GARNISH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP |
| *3 | FRONT DOOR SCUFF PLATE | *4 | FRONT SEAT OUTER BELT ASSEMBLY |
| *5 | FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY | *6 | LOWER CENTER PILLAR GARNISH |
| *7 | REAR DOOR OPENING TRIM WEATHERSTRIP | *8 | REAR DOOR SCUFF PANEL LH |
| *9 | REAR DOOR SCUFF PLATE LH | *10 | REAR DOOR SCUFF PLATE RH |
| *11 | REAR OUTER SEAT TRACK BRACKET COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
