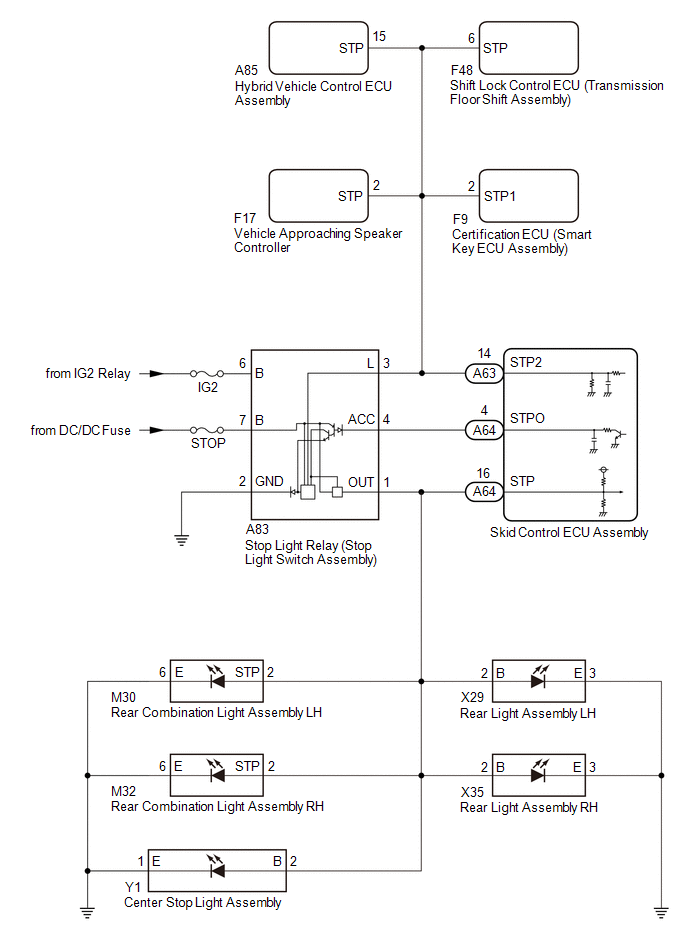

DTC C1A4B: Stop Light Relay Circuit [11/2016 - ]: Wiring Diagram

GTY698038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
