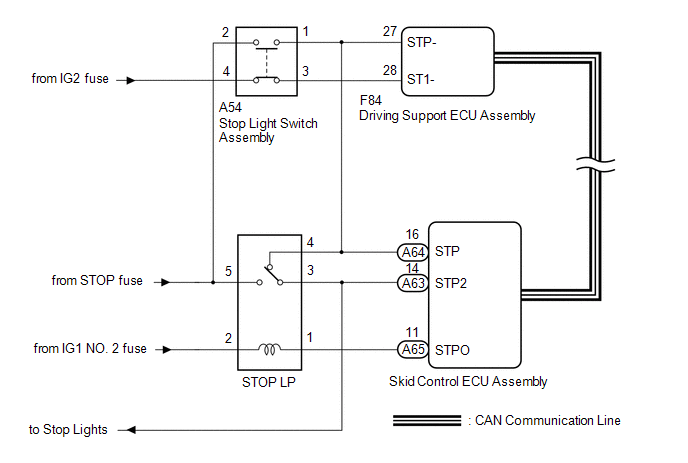

DTC C1A4B: Stop Light Relay Circuit [02/2014 - 11/2016]: Wiring Diagram

GTY447144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
