Supplemental Restraint System - Diagnostic Codes & Vehicle Control History (Hybrid)
>>
Airbag System
>>
DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit [02/2014 - ]
>>
Wiring Diagram

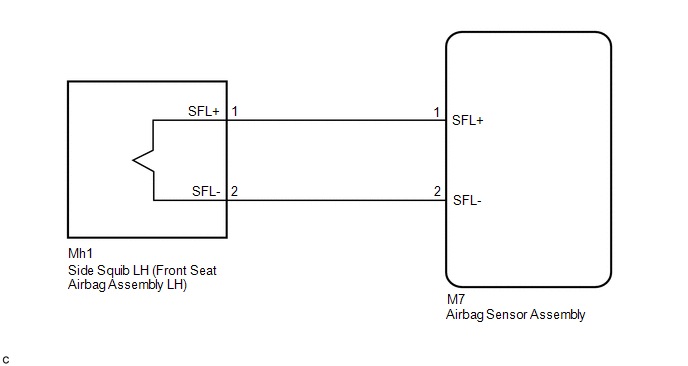

DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit [02/2014 - ]: Wiring Diagram
