DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit [02/2014 - ]: Procedure

CHECK CONNECTORS

Turn the power switch off.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Seat Airbag Assembly LH
*2	Airbag Sensor Assembly
*3	No. 2 Floor Wire

Disconnect the cable from the negative (-) auxiliary battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
Check that the connectors are properly connected to the front seat airbag assembly LH and airbag sensor assembly.
OK

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
Disconnect the connectors from the front seat airbag assembly LH and airbag sensor assembly.
Check that the terminals of the connectors are not damaged.
OK

The terminals are not deformed or damaged.

Check that the short springs of the activation prevention mechanism of the No. 2 floor wire are not deformed or damaged.

The short springs are not deformed or damaged.

Result

Proceed to
OK
NG

Result: 2

REPLACE NO. 2 FLOOR WIRE

Result: 1

See step 2

CHECK FRONT SEAT AIRBAG ASSEMBLY LH

Connect the connector to the airbag sensor assembly.

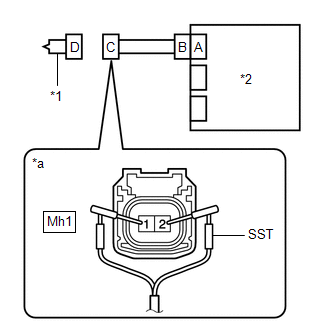

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Seat Airbag Assembly LH
*2	Airbag Sensor Assembly
*a	Front view of wire harness connector (to Front Seat Airbag Assembly LH)

Connect SST (resistance 2.1 Ω) to connector C.
WARNING:
Never connect a tester to the front seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE:
- Do not forcibly insert SST into the terminals of the connector when connecting it.
- Insert SST straight into the terminals of the connector.
- SST: 09843-18061
Connect the cable to the negative (-) auxiliary battery terminal.
Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [02/2014 - ]

Body Electrical > SRS Airbag > Clear DTCs
Turn the power switch off.
Turn the power switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
Refer to DTC CHECK / CLEAR [02/2014 - ]

Body Electrical > SRS Airbag > Trouble Codes

OK

DTC B1825/56, B1826/56, B1827/56 or B1828/56 is not output.

HINT:

Codes other than DTCs B1825/56, B1826/56, B1827/56 and B1828/56 may be output at this time, but they are not related to this check.
Turn the power switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Disconnect SST from connector C.

Result

Proceed to
OK
NG

Result: 1

REPLACE FRONT SEAT AIRBAG ASSEMBLY LH. Refer to REMOVAL [02/2014 - 11/2016] Refer to REMOVAL [11/2016 - ]

Result: 2

See step 3

CHECK NO. 2 FLOOR WIRE

Disconnect the No. 2 floor wire from the airbag sensor assembly.

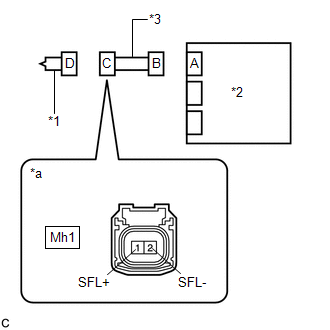

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Seat Airbag Assembly LH
*2	Airbag Sensor Assembly
*3	No. 2 Floor Wire
*a	Front view of wire harness connector (to Front Seat Airbag Assembly LH)

Check for a short to B+ in the circuit.

Connect the cable to the negative (-) auxiliary battery terminal.
Turn the power switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
Mh1-1 (SFL+) - Body ground	Power switch on (IG)	Below 1 V
Mh1-2 (SFL-) - Body ground	Power switch on (IG)	Below 1 V

Turn the power switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Check for an open in the circuit.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Mh1-1 (SFL+) - Mh1-2 (SFL-)	Always	Below 1 Ω

Check for a short to ground in the circuit.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Mh1-1 (SFL+) - Body ground	Always	1 MΩ or higher
Mh1-2 (SFL-) - Body ground	Always	1 MΩ or higher

Check for a short in the circuit.

Release the activation prevention mechanism built into connector B.
Refer to DIAGNOSIS SYSTEM [02/2014 - ]

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Mh1-1 (SFL+) - Mh1-2 (SFL-)	Always	1 MΩ or higher

Restore the released activation prevention mechanism of connector B to the original condition.

Result

Proceed to
OK
NG

Result: 2

REPLACE NO. 2 FLOOR WIRE

Result: 1

See step 4

CHECK DTC

Connect the connectors to the front seat airbag assembly LH and airbag sensor assembly.

*1	Front Seat Airbag Assembly LH
*2	Airbag Sensor Assembly

Connect the cable to the negative (-) auxiliary battery terminal.
Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [02/2014 - ]

Body Electrical > SRS Airbag > Clear DTCs
Turn the power switch off.
Turn the power switch on (IG), and wait for at least 60 seconds.

Check for DTCs.

Refer to DTC CHECK / CLEAR [02/2014 - ]

Body Electrical > SRS Airbag > Trouble Codes

DTC B1825/56, B1826/56, B1827/56 or B1828/56 is not output.

HINT:

Codes other than DTCs B1825/56, B1826/56, B1827/56 and B1828/56 may be output at this time, but they are not related to this check.

Result

Proceed to
OK
NG

Result: 1

USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [02/2014 - 11/2016] Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]

Result: 2

REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [02/2014 - ]
