Home >> Toyota >> 2016 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System - Diagnostic Codes & Vehicle Control History (Hybrid) >> Airbag System >> DTC B1820/55: Short in Side Squib RH Circuit; DTC B1821/55: Open in Side Squib RH Circuit; DTC B1822/55: Short to GND in Side Squib RH Circuit; DTC B1823/55: Short to B+ in Side Squib RH Circuit [02/2014 - ] >> Wiring Diagram

DTC B1820/55: Short in Side Squib RH Circuit; DTC B1821/55: Open in Side Squib RH Circuit; DTC B1822/55: Short to GND in Side Squib RH Circuit; DTC B1823/55: Short to B+ in Side Squib RH Circuit [02/2014 - ]: Wiring Diagram

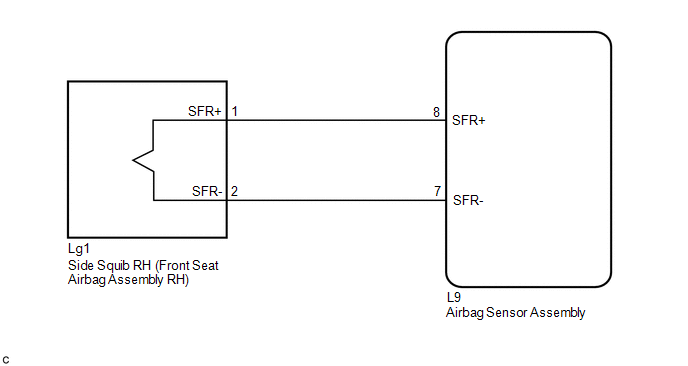

GTY423445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
