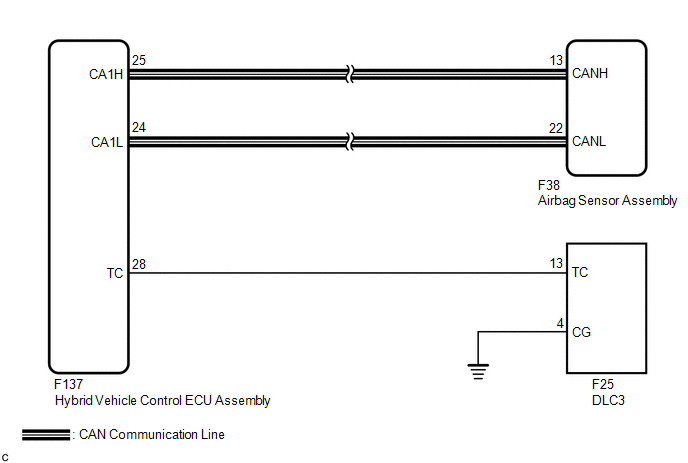

TC and CG Terminal Circuit [11/2016 - ]: Wiring Diagram

GTY721471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
