TC and CG Terminal Circuit [02/2014 - 11/2016]: Procedure

1. Turn the power switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

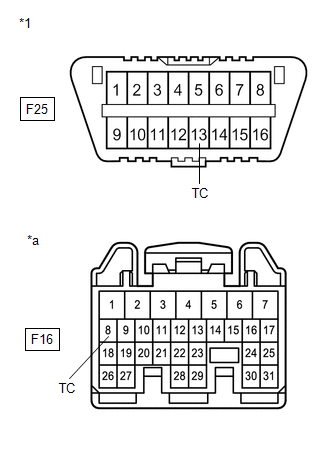

   *1	DLC3
   *a	Front view of wire harness connector (to Power Management Control ECU)

2. Disconnect the connector from the power management control ECU.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F25-13 (TC) - F16-8 (TC)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE WIRE HARNESS

Result:  1

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F25-4 (CG) - Body ground	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   DLC3

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE WIRE HARNESS

Result:  1

OK

See step  3

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F25-13 (TC) - Body ground	Always	1 MΩ or higher

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   DLC3

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [02/2014 - ]

Result:  2

NG

REPAIR OR REPLACE WIRE HARNESS OR REPLACE EACH ECU
