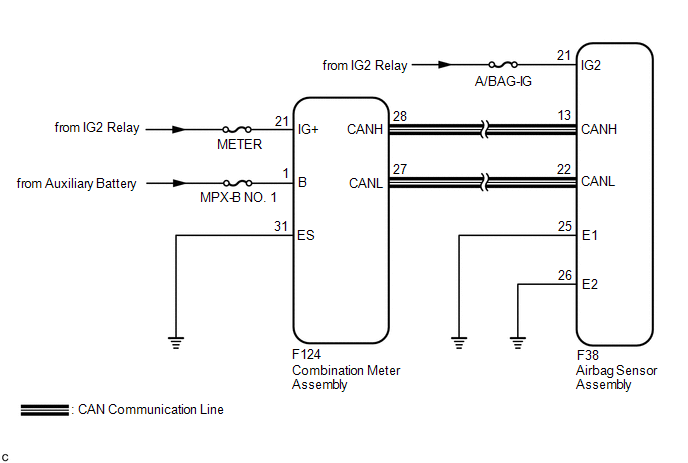

SRS Warning Light does not Come ON [11/2016 - ]: Wiring Diagram

GTY702726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
