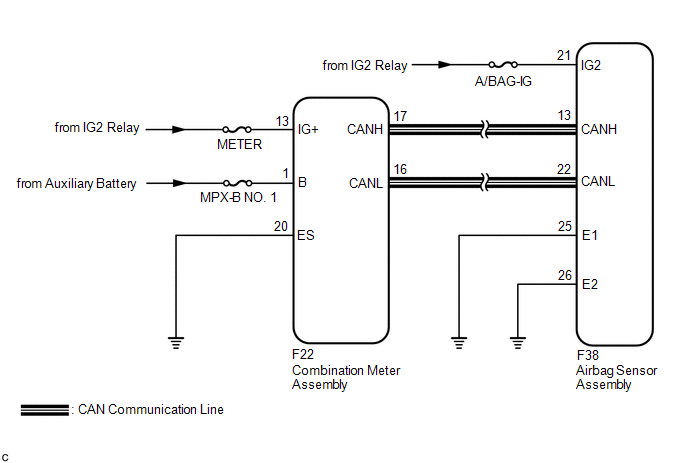

SRS Warning Light does not Come ON [02/2014 - 11/2016]: Wiring Diagram

GTY445986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
