Transmission Control Switch Circuit [11/2016 - ]: Procedure
- READ VALUE USING TECHSTREAM (SPORTS MODE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Sports Mode.
Powertrain > Hybrid Control > Data List
Tester Display Sports Mode - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Sports Mode Sports shift signal ON or OFF Shift lever in S: ON
Shift lever not in S position: OFFResult Proceed to The Techstream display changes according to the shift lever operation. A The Techstream display does not change according to the shift lever operation. B - Turn the power switch off.
Result:
B
See step 4
Result:
A
Go to next step
- READ VALUE USING TECHSTREAM (SPORT UP SHIFT SENS STATE, SPORT DWN SHIFT SENS STATE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Sport Up Shift Sens State, Sport Dwn Shift Sens State.
Powertrain > Hybrid Control > Data List
Tester Display Sport Up Shift Sens State Sport Dwn Shift Sens State - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Sport Up Shift Sens State Operation of "+" transmission control switch. ON or OFF Shift lever held in "+" operated: ON
Shift lever in S: OFFSport Dwn Shift Sens State Operation of "-" transmission control switch. ON or OFF Shift lever held in "-" operated: ON
Shift lever in S: OFFResult Proceed to The Techstream display changes according to the transmission control switch (transmission floor shift assembly) operation. A The Techstream display does not change according to the transmission control switch (transmission floor shift assembly) operation. B - Turn the power switch off.
Result:
B
See step 7
Result:
A
Go to next step
- CHECK FOR INTERMITTENT PROBLEMS
Refer to CHECK FOR INTERMITTENT PROBLEMS [02/2014 - ] .
Proceed to OK NG Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [11/2016 - ] .
Result:
NG
REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Disconnect the F46 transmission control switch (transmission floor shift assembly) connector.
Refer to REMOVAL [02/2014 - ]
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition F46-3 (IG) - Body ground Power switch on (IG) 11 to 14 V Power switch off Below 1 V *a Front view of wire harness connector
(to Transmission Control Switch (transmission floor shift assembly)) - Turn the power switch off.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F46-5 (E) - Body ground Power switch off Below 1 Ω - Reconnect the F46 transmission control switch (transmission floor shift assembly) connector.
Proceed to OK NG
Result:
NG
CHECK POWER SOURCE CIRCUIT
Result:
OK
Go to next step
- Disconnect the F46 transmission control switch (transmission floor shift assembly) connector.
- INSPECT TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY)
- Disconnect the F46 transmission control switch (transmission floor shift assembly) connector.
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance
Tester Connection Condition Specified Condition F46-3 (IG) - F46-7 (S) Shift lever in S
Shift lever held in "+" or "-"Below 1 Ω Shift lever in any position except S 10 kΩ or higher F46-2 (SFTU) - F46-5 (E) Shift lever held in "+" Below 1 Ω Shift lever in S 10 kΩ or higher F46-1 (SFTD) - F46-5 (E) Shift lever held in "-" Below 1 Ω Shift lever in S 10 kΩ or higher *a Component without harness connected
(Transmission Control Switch (Transmission Floor Shift Assembly)) - Reconnect the F46 transmission control switch (transmission floor shift assembly) connector.
Proceed to OK NG
Result:
NG
REPLACE TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY). Refer to COMPONENTS [02/2014 - ] .
Result:
OK
Go to next step
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY))
- Disconnect the F137 hybrid vehicle control ECU assembly connector.

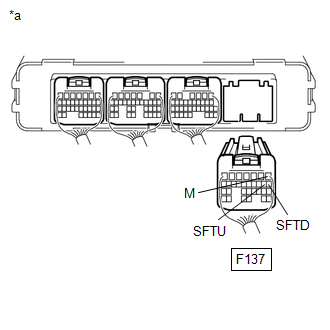

*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly) - Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.
Standard Voltage
Tester Connection Condition Specified Condition F137-1 (M) - Body ground Power switch on (IG) S, "+" and "-" 11 to 14 V Power switch on (IG) Except S, "+" and "-" Below 1 V NOTE:If the power switch is turned on (IG) with the hybrid vehicle control ECU assembly connector disconnected, other DTCs will be stored. After performing the inspection, clear the DTCs.
- Turn the power switch off.
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance
Tester Connection Condition Specified Condition F137-9 (SFTU) - Body ground Shift lever in S
Shift lever held in "+"Below 1 Ω Shift lever in S 10 kΩ or higher F137-8 (SFTD) - Body ground Shift lever in S
Shift lever held in "-"Below 1 Ω Shift lever in S 10 kΩ or higher - Reconnect the F137 hybrid vehicle control ECU assembly connector.
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [11/2016 - ] .
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the F137 hybrid vehicle control ECU assembly connector.
- INSPECT TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY)
- Disconnect the F46 transmission control switch (transmission floor shift assembly) connector.
Refer to REMOVAL [02/2014 - ] .
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance
Tester Connection Condition Specified Condition F46-2 (SFTU) - F46-5 (E) Shift lever held in "+" Below 1 Ω Shift lever in S 10 kΩ or higher F46-1 (SFTD) - F46-5 (E) Shift lever held in "-" Below 1 Ω Shift lever in S 10 kΩ or higher *a Component without harness connected
(to Transmission Control Switch (Transmission Floor Shift Assembly)) - Reconnect the F46 transmission control switch (transmission floor shift assembly) connector.
Proceed to OK NG
Result:
NG
REPLACE TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY). Refer to COMPONENTS [02/2014 - ] .
Result:
OK
Go to next step
- Disconnect the F46 transmission control switch (transmission floor shift assembly) connector.
- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY) - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
- Disconnect the F137 hybrid vehicle control ECU assembly connector.
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance
Tester Connection Condition Specified Condition F137-9 (SFTU) - Body ground Shift lever in S
Shift lever held in "+"Below 1 Ω Shift lever in S 10 kΩ or higher F137-8 (SFTD) - Body ground Shift lever in S

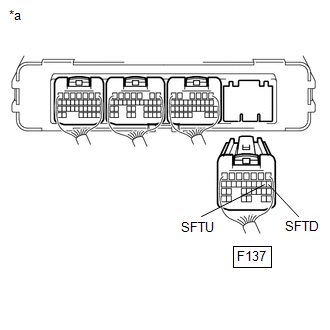

Shift lever held in "-"Below 1 Ω Shift lever in S 10 kΩ or higher *a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly) - Reconnect the F137 hybrid vehicle control ECU assembly connector.
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [11/2016 - ] .
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
