Ecu Power Source Circuit [11/2016 - ]: Wiring Diagram

Refer to the wiring diagram for DTC P0A08-264.

Refer to WIRING DIAGRAM

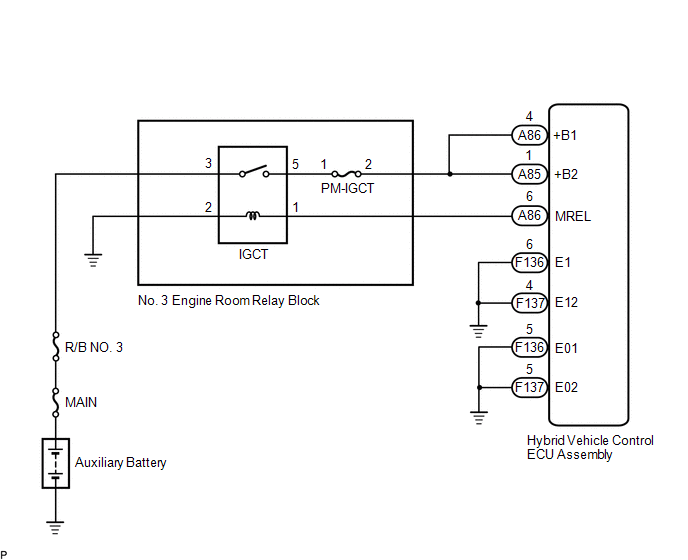

GTY737625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
