DTC P0A08-264: DC / DC Converter Status Circuit [02/2014 - 11/2016]: Wiring Diagram

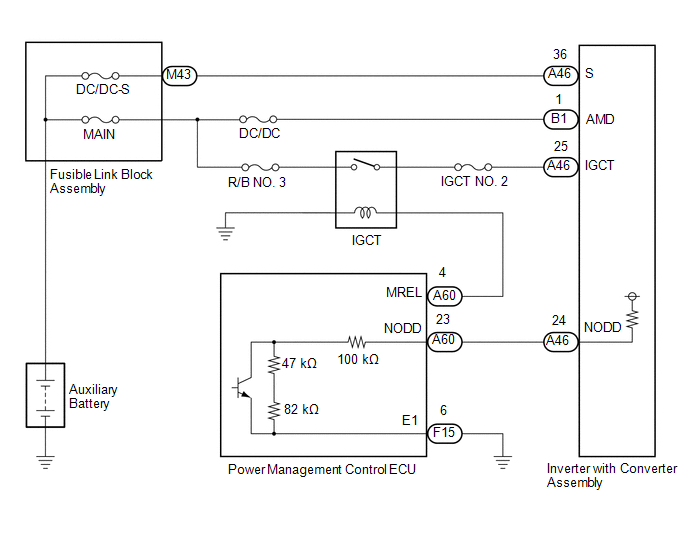

GTY441413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to the wiring diagram for DTC P0AA6-526.

Refer to WIRING DIAGRAM .
