DTC P0516-769: Battery Temperature Sensor Circuit Low; DTC P0517-770: Battery Temperature Sensor Circuit High [02/2014 - 11/2016]: Procedure

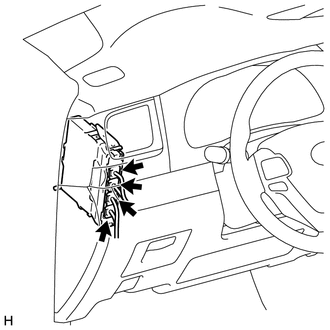

- CHECK CONNECTOR CONNECTION CONDITION (POWER MANAGEMENT CONTROL ECU CONNECTOR)
- Check the connector connections and contact pressure of the relevant terminals for the power management control ECU connectors.
Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [02/2014 - ] .
OK
The connectors are connected securely and there are no contact pressure problems.
Result
Proceed to OK NG
Result:
NG
CONNECT SECURELY
Result:
OK
Go to next step
- Check the connector connections and contact pressure of the relevant terminals for the power management control ECU connectors.
- READ VALUE USING TECHSTREAM (AUXILIARY BATT TEMPERATURE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.
Powertrain > Hybrid Control > Data List
Tester Display Auxiliary Batt Temperature - Read the Data List.
Result
Proceed to -40°C (-40°F) 215°C (419°F) Same as actual temperature - Turn the power switch off.
Result:
215°C (419°F)
See step 5
Result:
Same as actual temperature
CHECK FOR INTERMITTENT PROBLEMS.
Refer to CHECK FOR INTERMITTENT PROBLEMS [02/2014 - ] .
Result:
-40°C (-40°F)
Go to next step
- READ VALUE USING TECHSTREAM (CHECK FOR OPEN)

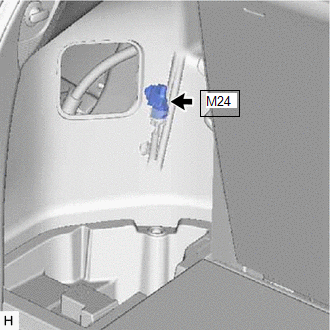

- Disconnect the M24 thermistor assembly connector.
- Connect terminals 2 (THB) and 1 (E2) of the M24 thermistor assembly connector.
*a Front view of wire harness connector
(to Thermistor Assembly) - Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.
Powertrain > Hybrid Control > Data List
Tester Display Auxiliary Batt Temperature - Read the Data List.
OK
Tester Display Condition Specified Condition Auxiliary Batt Temperature Terminals THB and E2 connected
Power switch on (IG)215°C (419°F) - Turn the power switch off.
- Reconnect the M24 thermistor assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE THERMISTOR ASSEMBLY
Result:
NG
Go to next step
- Disconnect the M24 thermistor assembly connector.
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - THERMISTOR ASSEMBLY)
- Connect terminals 27 (THB) and 26 (ETHB) of the F15 power management control ECU connector.
*a Component with harness connected
(Power Management Control ECU) - Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.
Powertrain > Hybrid Control > Data List
Tester Display Auxiliary Batt Temperature - Read the Data List.
OK
Tester Display Condition Specified Condition Auxiliary Batt Temperature Terminals THB and E2 connected
Power switch on (IG)215°C (419°F) - Turn the power switch off.
Result
Proceed to OK NG
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE POWER MANAGEMENT CONTROL ECU.
Refer to COMPONENTS [02/2014 - 11/2016] .
- Connect terminals 27 (THB) and 26 (ETHB) of the F15 power management control ECU connector.
- READ VALUE USING TECHSTREAM (CHECK FOR SHORT)
- Disconnect the M24 thermistor assembly connector.
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.
Powertrain > Hybrid Control > Data List
Tester Display Auxiliary Batt Temperature - Read the Data List.
OK
Tester Display Condition Specified Condition Auxiliary Batt Temperature Power switch on (IG) -40°C (-40°F) - Turn the power switch off.
- Reconnect the M24 thermistor assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE THERMISTOR ASSEMBLY
Result:
NG
Go to next step
- Disconnect the M24 thermistor assembly connector.
- CHECK HARNESS AND CONNECTOR (THERMISTOR ASSEMBLY - POWER MANAGEMENT CONTROL ECU)
- Disconnect the M24 thermistor assembly connector.
- Disconnect the F15 power management control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition M24-2 (THB) - F15-27 (THB) Power switch off Below 1 Ω M24-1 (E2) - F15-26 (ETHB) Power switch off Below 1 Ω Standard Resistance (Check for Short)

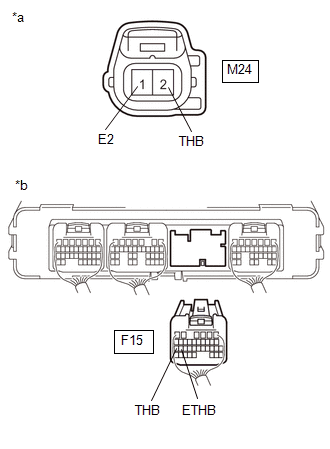

Tester Connection Condition Specified Condition M24-2 (THB) or F15-27 (THB) - Body ground and other terminals Power switch off 10 kΩ or higher M24-1 (E2) or F15-26 (ETHB) - Body ground and other terminals Power switch off 10 kΩ or higher *a Front view of wire harness connector
(to Thermistor Assembly)*b Rear view of wire harness connector
(to Power Management Control ECU) - Reconnect the F15 power management control ECU connector.
- Reconnect the M24 thermistor assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE POWER MANAGEMENT CONTROL ECU.
Refer to COMPONENTS [02/2014 - 11/2016] .
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
