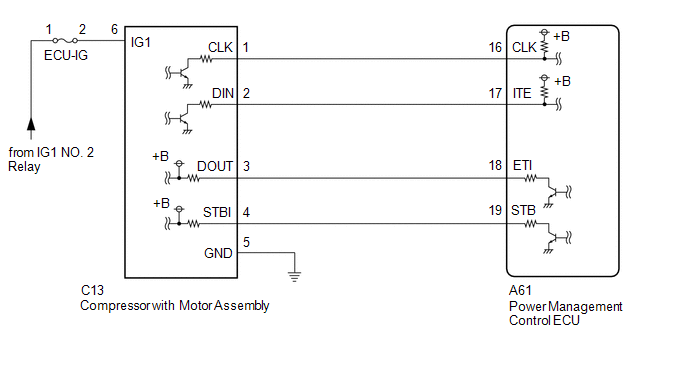

DTC P3108-536: Lost Communication with A/C System Control Module [02/2014 - 11/2016]: Wiring Diagram

GTY452290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
