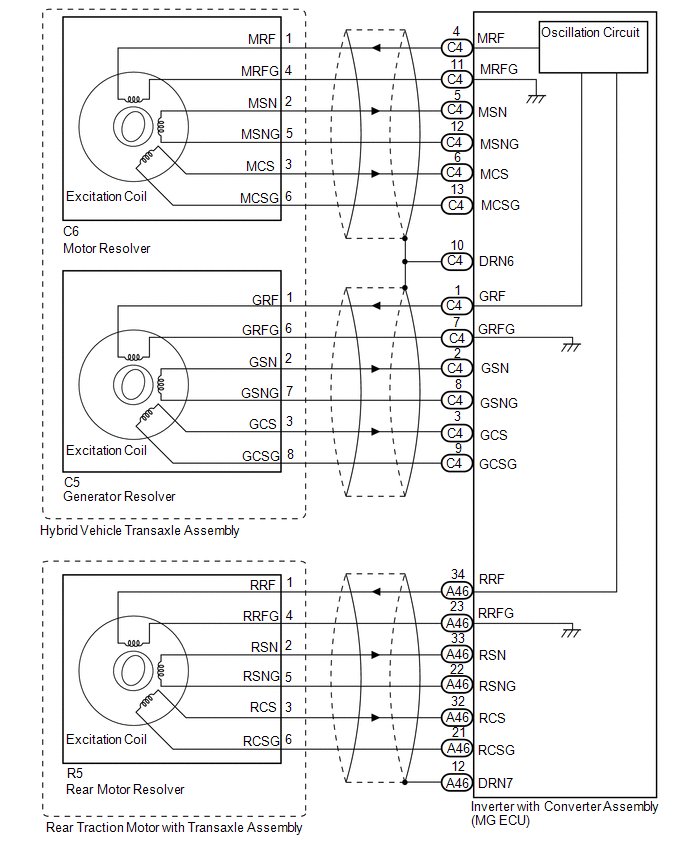

DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [02/2014 - 11/2016]: Wiring Diagram

GTY594850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
