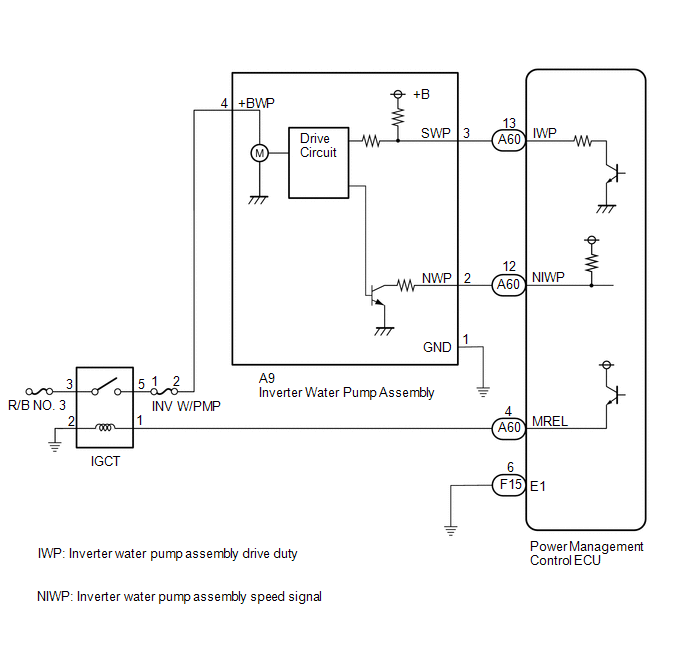

DTC P0C73-776: Motor Electronics Coolant Pump "A" Control Performance [02/2014 - 11/2016]: Wiring Diagram

GTY435052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
