DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low [02/2014 - 11/2016]: Wiring Diagram

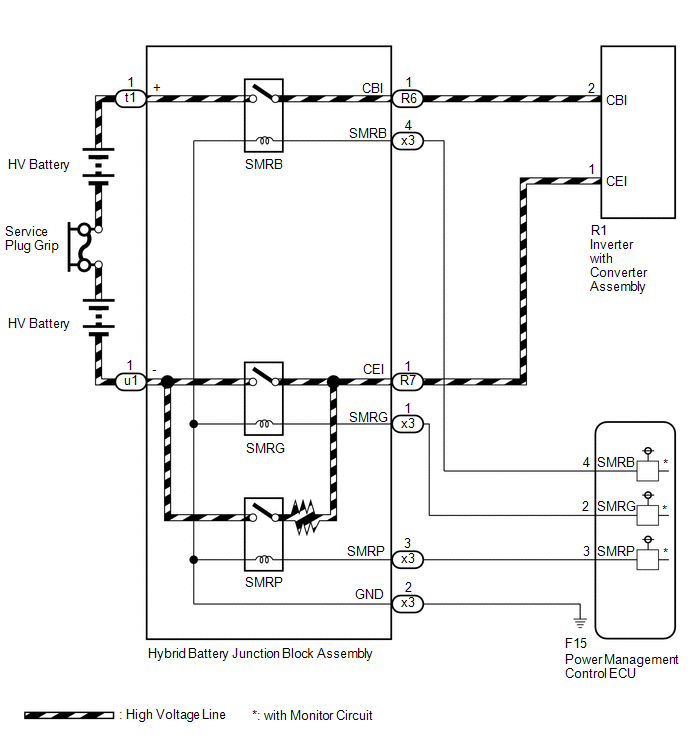

GTY448050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

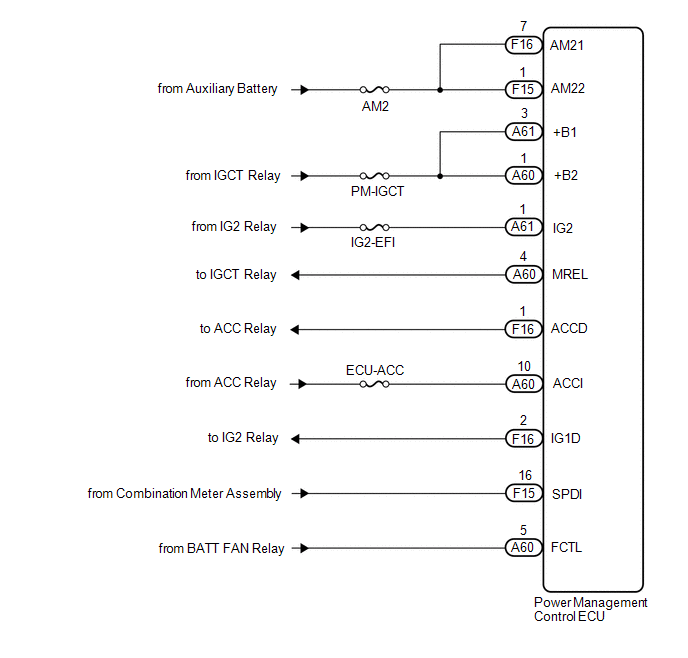

GTY440376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
