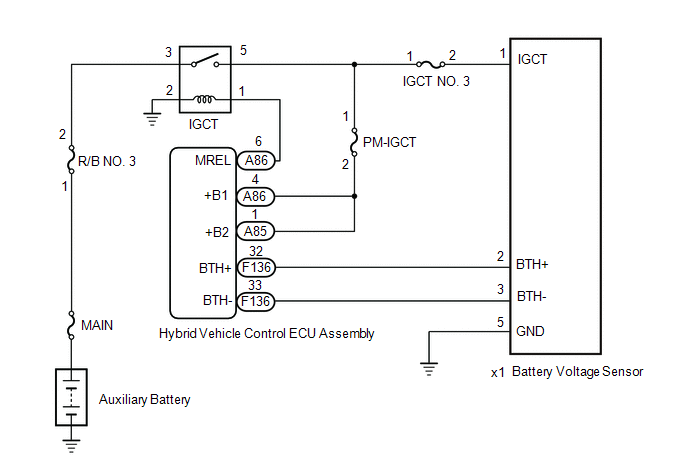

DTC P0AFC-123: Hybrid Battery Pack Sensor Module [11/2016 - ]: Wiring Diagram

GTY708840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
