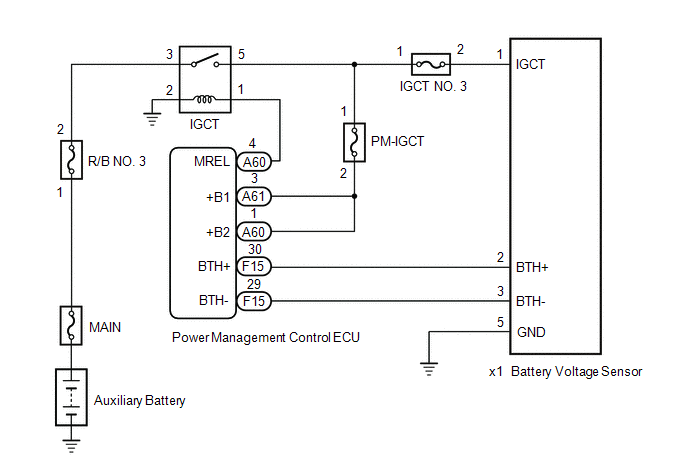

DTC P0AFC-123: Hybrid Battery Pack Sensor Module [02/2014 - 11/2016]: Wiring Diagram

GTY436023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
