Removal [11/2016 - ]: Procedure

PRECAUTION
NOTE:
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
  Refer to PRECAUTION [11/2016 - ]
- Before replacing the hybrid vehicle control ECU assembly, refer to Registration.
  Refer to REGISTRATION [11/2016 - ]
REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2016 - ]
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 11
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 15
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 18

REMOVE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Disconnect each connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt, nut and hybrid vehicle control ECU assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Nut

REMOVE NO. 1 POWER MANAGEMENT CONTROL BRACKET

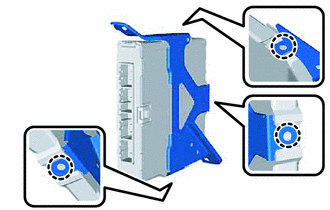

Disengage the 3 claws to remove the No. 1 power management control bracket from the hybrid vehicle control ECU assembly.
