Installation [11/2016 - ]: Procedure

INSTALL NO. 1 POWER MANAGEMENT CONTROL BRACKET
1. Engage the 3 claws to install the No. 1 power management control bracket to the hybrid vehicle control ECU assembly.

INSTALL HYBRID VEHICLE CONTROL ECU ASSEMBLY

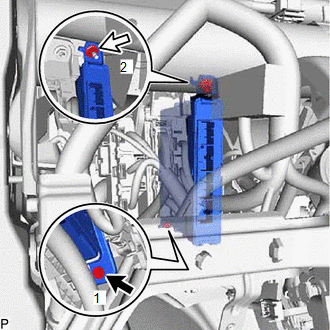

Temporarily install the hybrid vehicle control ECU assembly with the bolt and nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Nut

INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 32
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 33
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 34
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 35
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 53
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 54
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 55
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2016 - ]
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 70
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 71
PERFORM INITIALIZATION
Refer to INITIALIZATION [11/2016 - ]
