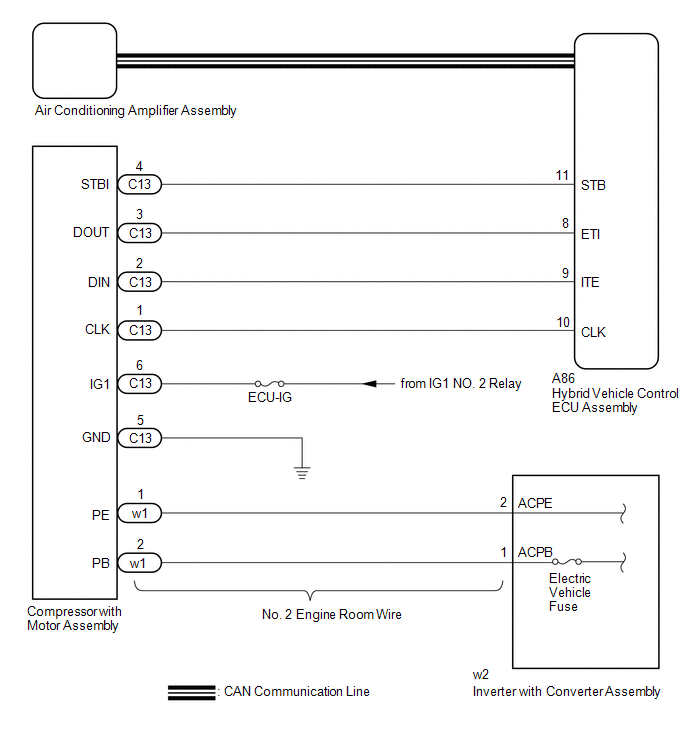

DTC B1473/73: A/C Inverter Start-up Signal System Malfunction [11/2016 - ]: Wiring Diagram

GTY738503

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
