Blower Motor Circuit [02/2014 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Air Conditioner / Active Test.
5. Check the operation by referring to the table below.

   Body Electrical > Air Conditioner > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Blower Motor	Blower motor with fan sub-assembly	Min.: 0 Max.: 31	-

   Body Electrical > Air Conditioner > Active Test

   Tester Display
   Blower Motor

   Result

   Result	Proceed to
   OK	A
   NG (Blower motor with fan sub-assembly does not operate)	B
   NG (Blower motor with fan sub-assembly operates but does not change speed)	C

Result:  1

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [02/2014 - 11/2016]  Refer to  PROBLEM SYMPTOMS TABLE [11/2016 - ]

Result:  3

C

See step  6

Result:  2

B

See step  2

1. Disconnect the F82 blower motor with fan sub-assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F82-1 (GND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  3

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F82-3 (+B) - Body ground	Power switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  4

1. Disconnect the F80 air conditioning amplifier assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F80-22 (BLW) - F82-2 (SI)	Always	Below 1 Ω
   F80-22 (BLW) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  5

1. Reconnect the F82 blower motor with fan sub-assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F80-22 (BLW) - Body ground	Always	4.5 to 5.5 V

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to  REMOVAL [02/2014 - ]

Result:  1

OK

See step  6

1. Reconnect the F80 air conditioning amplifier assembly connector.
2. Turn the power switch on (IG).
3. Turn the blower switch on (LO).

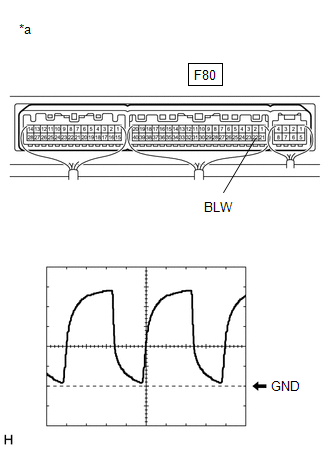

4. Measure the waveform between terminal F80-22 (BLW) of the air conditioning amplifier assembly and body ground.

   OK

   Waveform is similar to that shown in the illustration.

   HINT:

   The waveform varies with the blower speed.

   Item	Content
   Tool Setting	1 V/DIV., 500 μs./DIV.
   Vehicle Condition	Power switch on (IG) Blower switch: LO

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Air Conditioning Amplifier Assembly)

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to  REMOVAL [02/2014 - ]

Result:  2

NG

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [02/2014 - ]
