Removal [02/2014 - 11/2016]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 11

  3. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 2

  4. REMOVE RADIATOR GRILLE

    Refer to REMOVAL [02/2014 - 11/2016]

  5. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 2

  6. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 12

  7. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  8. REMOVE INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 3 INVERTER BRACKET

    Refer to PROCEDURE - Step 6

  10. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

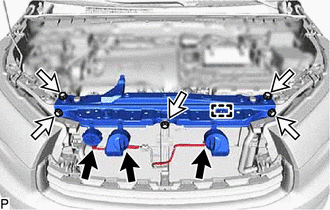

    1. Disconnect the 3 connectors.
      GTY449920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 5 bolts and upper radiator support sub-assembly.
  11. REMOVE CONDENSER ASSEMBLY WITH RADIATOR ASSEMBLY

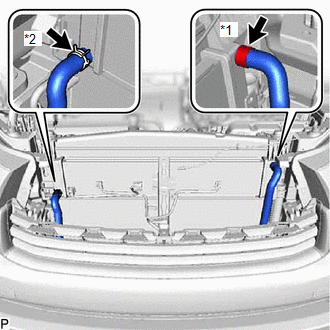

    1. Using pliers, grip the claws of the clip and slide the 2 clips to disconnect the outlet hybrid radiator hose and inlet hybrid radiator hose from the radiator assembly.
      GTY436359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outlet Hybrid Radiator Hose
      *2 Inlet Hybrid Radiator Hose
      NOTE:

      Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent entry of foreign matter.

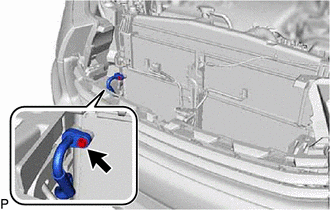

    2. Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.
      GTY455428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

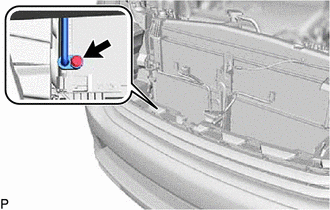

    4. Remove the bolt and disconnect the air conditioner tube and accessory assembly from the cooler condenser assembly.
      GTY447006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the O-ring from the air conditioner tube and accessory assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

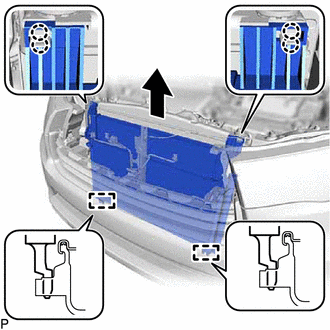

    6. Disengage the 4 claws.
      GTY447007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 2 guides and remove the cooler condenser assembly with radiator assembly as shown in the illustration.
      NOTE:

      Do not damage the condenser or radiator when removing the cooler condenser assembly with radiator assembly.

  12. REMOVE COOLER CONDENSER ASSEMBLY

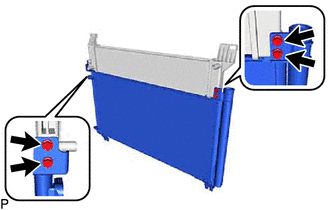

    1. Remove the 4 bolts and cooler condenser assembly from the radiator assembly.
      GTY446952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
