Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exhaust Manifold Replacement Components (1 Of 6)
GTY710711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER *2 NO. 2 ENGINE UNDER COVER
*3 FRONT FLOOR COVER LH - -


Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 6)
GTY721053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (3 Of 6)
GTY716414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-BANK COVER SUB-ASSEMBLY *2 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
*3 RESERVOIR BRACKET *4 WIRE HARNESS
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (4 Of 6)
GTY729865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 EGR PIPE *2 NO. 2 EGR PIPE GASKET
*3 WATER BY-PASS HOSE ASSEMBLY *4 EGR VALVE ASSEMBLY
*5 EGR COOLER ASSEMBLY *6 NO. 6 WATER BY-PASS HOSE
*7 EGR COOLER BRACKET *8 NO. 1 EGR PIPE
*9 NO. 9 WATER BY-PASS HOSE *10 EGR INLET GASKET
*11 EGR VALVE GASKET *12 STUD BOLT
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
• Non-reusable part - -

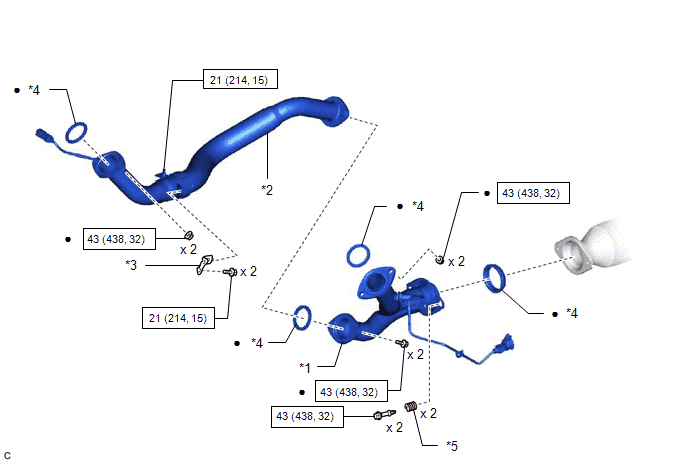

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (5 Of 6)
GTY700471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY *2 FRONT EXHAUST PIPE ASSEMBLY
*3 EXHAUST PIPE SUPPORT BRACKET *4 GASKET
*5 COMPRESSION SPRING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

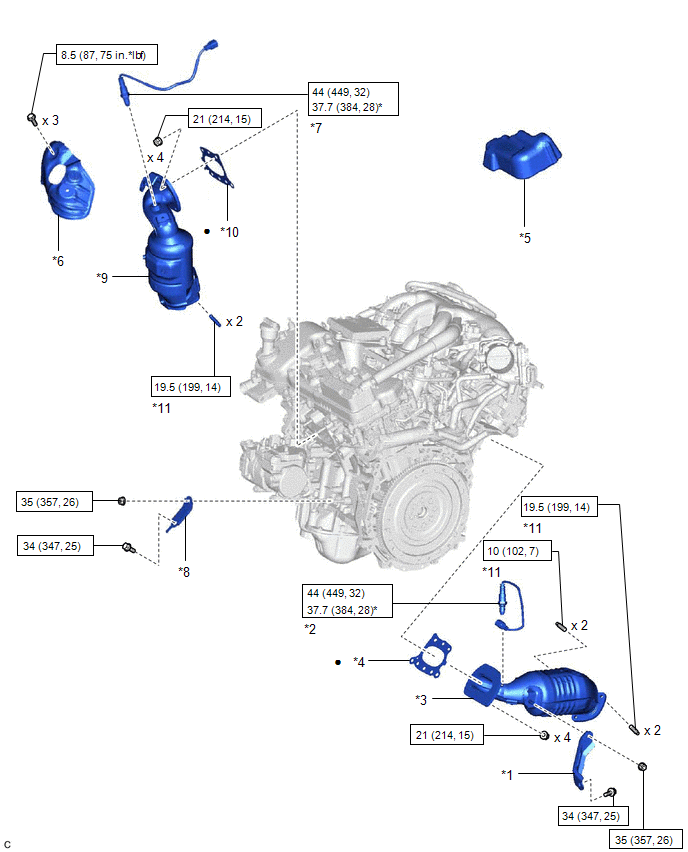

Fig 1: Exhaust Manifold & Catalytic Converter Replacement Components With Torque Specifications (6 Of 6)
GTY723476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MANIFOLD STAY *2 AIR FUEL RATIO SENSOR (for Bank 1)
*3 EXHAUST MANIFOLD (TWC: Front Catalyst) *4 EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
*5 NO. 1 ENGINE COVER *6 NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*7 AIR FUEL RATIO SENSOR (for Bank 2) *8 NO. 2 MANIFOLD STAY
*9 EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst) *10 EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)
*11 STUD BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
• Non-reusable part - -
