Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

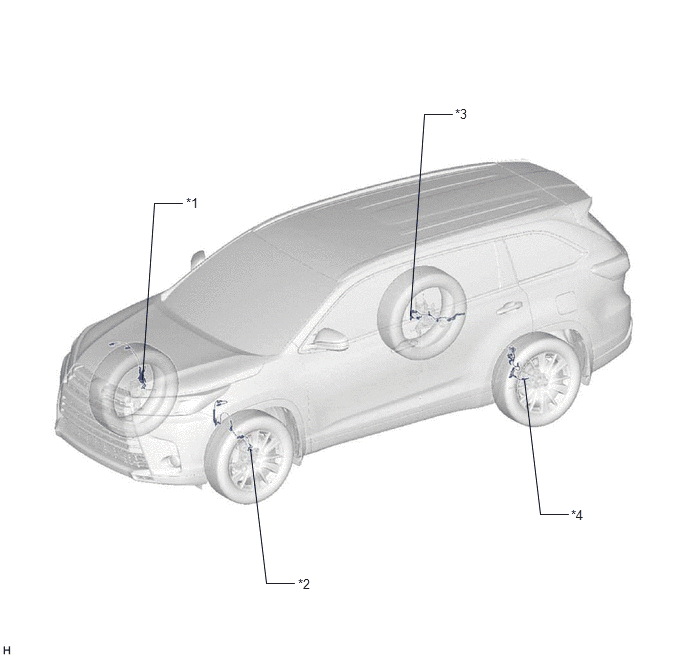

Fig 1: Lane Departure Alert System (W/ Steering Control) Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SPEED SENSOR RH	*2	FRONT SPEED SENSOR LH
*3	REAR SPEED SENSOR RH	*4	REAR SPEED SENSOR LH

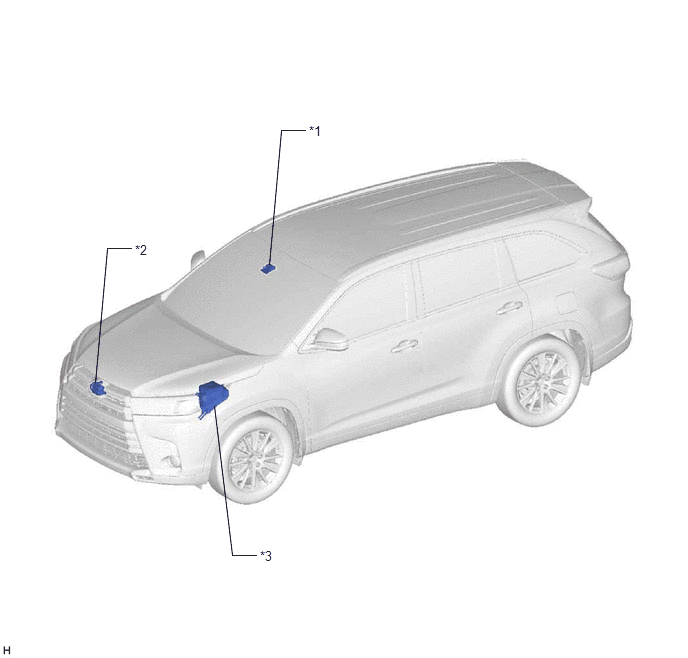

Fig 1: Lane Departure Alert System (W/ Steering Control) Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	-	-

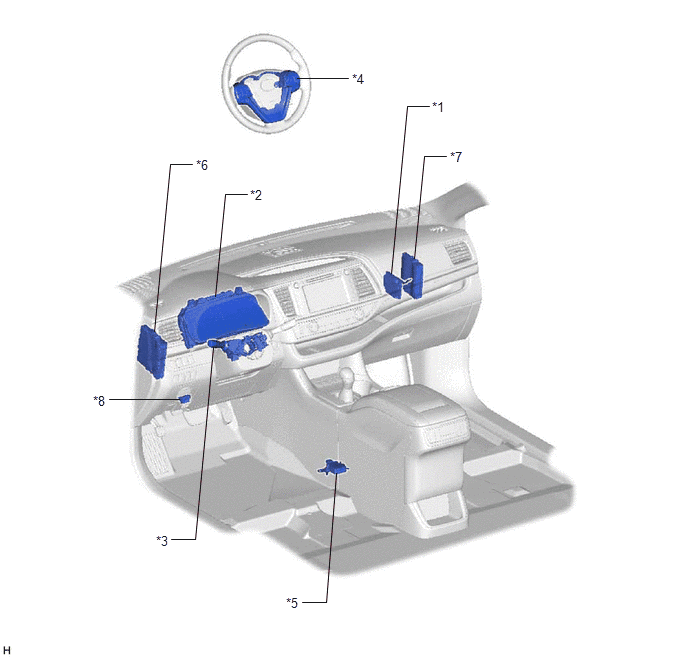

Fig 1: Lane Departure Alert System (W/ Steering Control) Components Location (3 Of 4)

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LANE DEPARTURE ALERT INDICATOR - LANE DEPARTURE ALERT BUZZER
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH	*4	STEERING PAD SWITCH ASSEMBLY - LANE DEPARTURE ALERT MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH)
*5	YAW RATE SENSOR ASSEMBLY	*6	HYBRID VEHICLE CONTROL ECU ASSEMBLY
*7	SKID CONTROL ECU ASSEMBLY	*8	DLC3

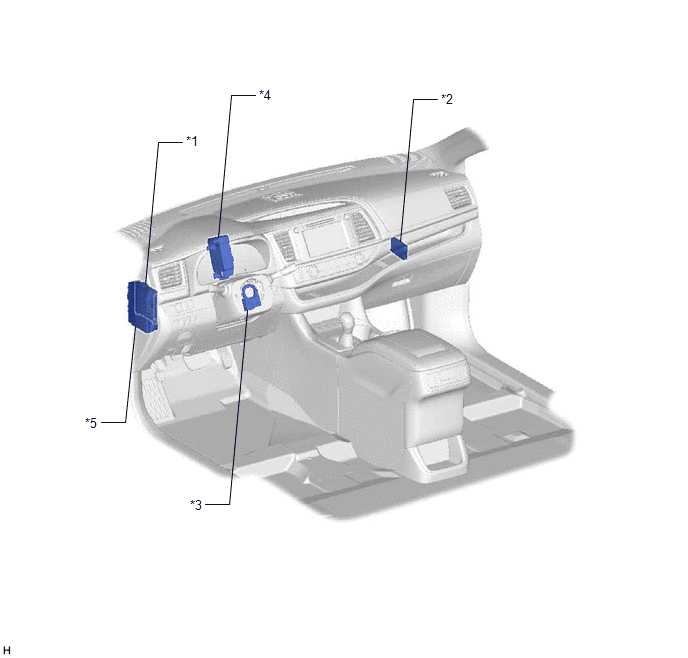

Fig 1: Lane Departure Alert System (W/ Steering Control) Components Location (4 Of 4)

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*3	STEERING SENSOR	*4	POWER STEERING ECU ASSEMBLY
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE	-	-
