DTC P2532-772: Ignition Switch Run Position Circuit High [11/2016 - ]: Procedure
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Result
Proceed to P2532-772 only is output. DTCs except P2532-772 are output. - Turn the power switch off.
Result: 2
DTCs except P2532-772 are output.
See step 6
Result: 1
P2532-772 only is output.
See step 2
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: System Select / CAN Bus Check.
CAN Bus Check
Result
Result Proceed to All of the ECUs and sensors that are currently connected to the CAN communication system are displayed. A None of the ECUs and sensors that are currently connected to the CAN communication system are displayed, or some of them are not displayed. B - Turn the power switch off.
Result: 2
B
GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]
Result: 1
A
See step 3
- CHECK HARNESS AND CONNECTOR (+B SHORT)
- Disconnect the A85 hybrid vehicle control ECU assembly connector.

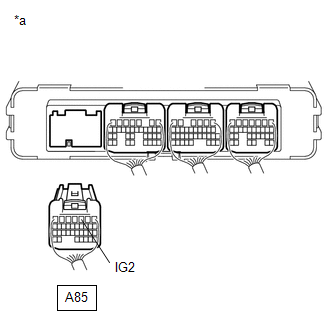

*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A85-3 (IG2) - Body ground Power switch off 1 V or less - Reconnect the A85 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result: 1
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [11/2016 - ]
Result: 2
NG
See step 4
- Disconnect the A85 hybrid vehicle control ECU assembly connector.
- INSPECT SEMICONDUCTOR PWR INTEGRATION ECU (IG2)
Refer to INSPECTION [02/2014 - ]
Result
Proceed to OK NG Result: 2
NG
REPLACE SEMICONDUCTOR PWR INTEGRATION ECU (IG2). Refer to COMPONENTS [02/2014 - ]
Result: 1
OK
See step 5
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - SEMICONDUCTOR PWR INTEGRATION ECU)
- Disconnect the A85 hybrid vehicle control ECU assembly connector.
- Remove the semiconductor pwr integration ECU from the No. 1 engine room relay block and No. 1 junction block assembly.
*1 No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly *2 Semiconductor Pwr Integration ECU - Measure the voltage according to the value(s) in the table below.
*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly)Standard Voltage
Tester Connection Condition Specified Condition A85-3 (IG2) - Body ground Power switch off 1 V or less - Install the semiconductor pwr integration ECU.
- Reconnect the A85 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result: 2
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: 1
OK
See step 6
- CHECK FOR INTERMITTENT PROBLEMS
- Check for intermittent problems.
Refer to CHECK FOR INTERMITTENT PROBLEMS [02/2014 - ]
- Check the connection and terminal contact pressure of the connectors and wire harnesses between the hybrid vehicle control ECU assembly and the No. 1 engine room relay block and No. 1 junction block assembly.
- When the power switch is on (READY), jiggle the connectors and wire harnesses between the hybrid vehicle control ECU assembly and the No. 1 engine room relay block and No. 1 junction block assembly.
Result
Proceed to Problem symptom does not recur. Problem symptom recurs.
Result: 1
Problem symptom does not recur.
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [11/2016 - ]
Result: 2
Problem symptom recurs.
REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
- Check for intermittent problems.
