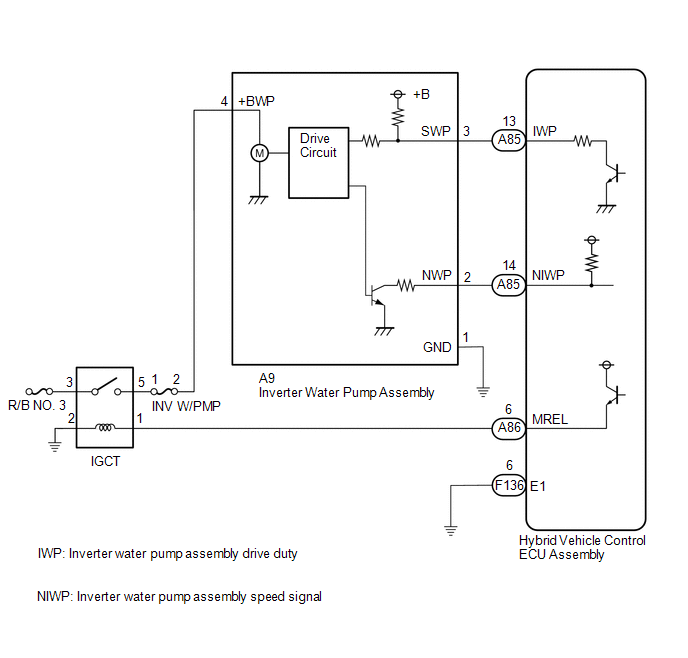

DTC P0C73-776: Motor Electronics Coolant Pump "A" Control Performance [11/2016 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
