DTC P0516-769: Battery Temperature Sensor Circuit Low; DTC P0517-770: Battery Temperature Sensor Circuit High [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU ASSEMBLY CONNECTOR)
    1. Check the connector connections and contact pressure of the relevant terminals for the hybrid vehicle control ECU assembly connectors.
      GTY430312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [02/2014 - ]

      OK

      The connectors are connected securely and there are no contact pressure problems.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    CONNECT SECURELY

    Result:  1

    OK

    See step  2

  2. READ VALUE USING TECHSTREAM (AUXILIARY BATT TEMPERATURE)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.

      Powertrain > Hybrid Control > Data List

      Tester Display
      Auxiliary Batt Temperature
    4. Read the Data List.

      Result

      Proceed to
      -40°C (-40°F)
      215°C (419°F)
      Same as actual temperature
    5. Turn the power switch off.

    Result:  6

    215°C (419°F)

    See step  4

    Result:  2

    Same as actual temperature

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [02/2014 - ]

    Result:  1

    -40°C (-40°F)

    See step  3

  3. READ VALUE USING TECHSTREAM (CHECK FOR OPEN)
    1. Disconnect the M24 thermistor assembly connector.
      GTY424833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect terminals 2 (THB) and 1 (E2) of the M24 thermistor assembly connector.
      GTY450639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Thermistor Assembly)
    3. Connect the Techstream to the DLC3.
    4. Turn the power switch on (IG).
    5. Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.

      Powertrain > Hybrid Control > Data List

      Tester Display
      Auxiliary Batt Temperature
    6. Read the Data List.

      OK

      Tester Display Condition Specified Condition
      Auxiliary Batt Temperature Terminals THB and E2 connected
      Power switch on (IG)      		 215°C (419°F)
    7. Turn the power switch off.
    8. Reconnect the M24 thermistor assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE THERMISTOR ASSEMBLY

    Result:  2

    NG

    See step  5

  4. READ VALUE USING TECHSTREAM (CHECK FOR SHORT)
    1. Disconnect the M24 thermistor assembly connector.
      GTY424830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the Techstream to the DLC3.
    3. Turn the power switch on (IG).
    4. Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.

      Powertrain > Hybrid Control > Data List

      Tester Display
      Auxiliary Batt Temperature
    5. Read the Data List.

      OK

      Tester Display Condition Specified Condition
      Auxiliary Batt Temperature Power switch on (IG) -40°C (-40°F)
    6. Turn the power switch off.
    7. Reconnect the M24 thermistor assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE THERMISTOR ASSEMBLY

    Result:  2

    NG

    See step  6

  5. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - THERMISTOR ASSEMBLY)
    1. Connect terminals 20 (THB) and 21 (ETHB) of the F137 hybrid vehicle control ECU assembly connector.
      GTY728433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (hybrid vehicle control ECU assembly)
    2. Connect the Techstream to the DLC3.
    3. Turn the power switch on (IG).
    4. Enter the following menus: Powertrain / Hybrid Control / Data List / Auxiliary Batt Temperature.

      Powertrain > Hybrid Control > Data List

      Tester Display
      Auxiliary Batt Temperature
    5. Read the Data List.

      OK

      Tester Display Condition Specified Condition
      Auxiliary Batt Temperature Terminals THB and E2 connected
      Power switch on (IG)      		 215°C (419°F)
    6. Turn the power switch off.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  2

    NG

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  COMPONENTS [11/2016 - ]

  6. CHECK HARNESS AND CONNECTOR (THERMISTOR ASSEMBLY - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
    1. Disconnect the M24 thermistor assembly connector.
    2. Disconnect the F137 hybrid vehicle control ECU assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      M24-2 (THB) - F137-20 (THB) Power switch off Below 1 Ω
      M24-1 (E2) - F137-21 (ETHB) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      M24-2 (THB) or F137-20 (THB) - Body ground and other terminals Power switch off 10 kΩ or higher
      M24-1 (E2) or F137-21 (ETHB) - Body ground and other terminals Power switch off 10 kΩ or higher

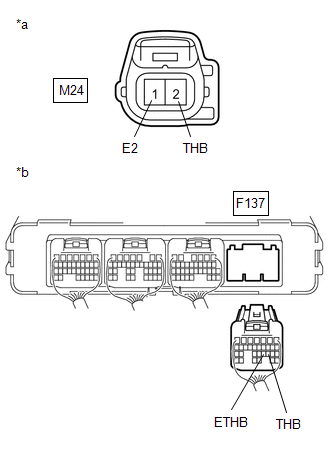

      GTY723496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Thermistor Assembly)
      *b Rear view of wire harness connector
      (to Hybrid Vehicle Control ECU Assembly)
    4. Reconnect the F137 hybrid vehicle control ECU assembly connector.
    5. Reconnect the M24 thermistor assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  COMPONENTS [11/2016 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
