Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

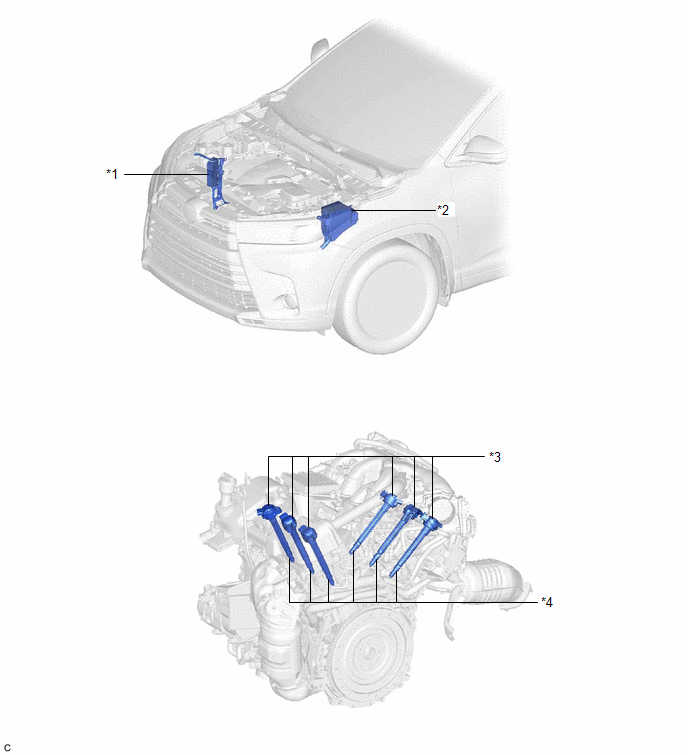

Fig 1: Ignition System Components Location
GTY701988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- SEMICONDUCTOR PWR INTEGRATION ECU (INJ FUSE)
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
