Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

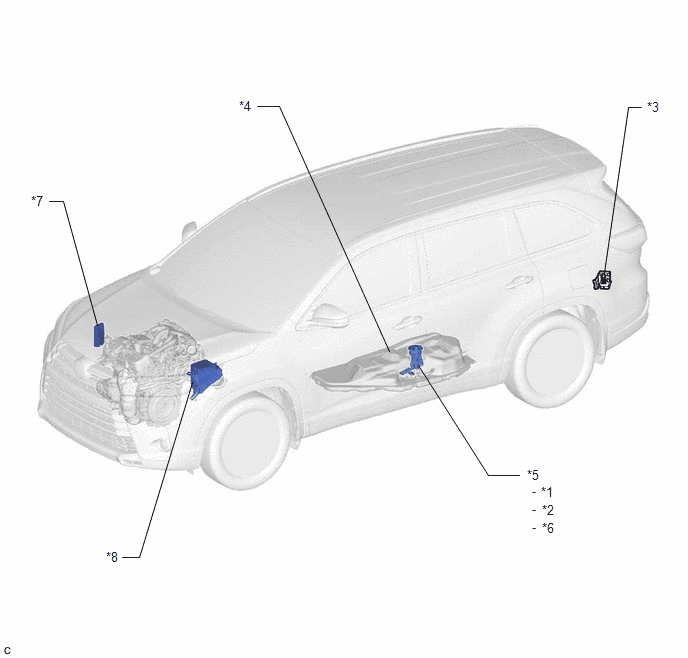

Fig 1: Fuel System Parts Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL PUMP (for Low Pressure)
*3	FUEL PUMP CONTROL ECU	*4	FUEL TANK ASSEMBLY
*5	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*6	FUEL MAIN VALVE ASSEMBLY
*7	ECM	*8	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - DINJ RELAY - EFI MAIN NO. 2 RELAY - EFI MAIN NO. 2 FUSE - EDU FUSE - INJ FUSE

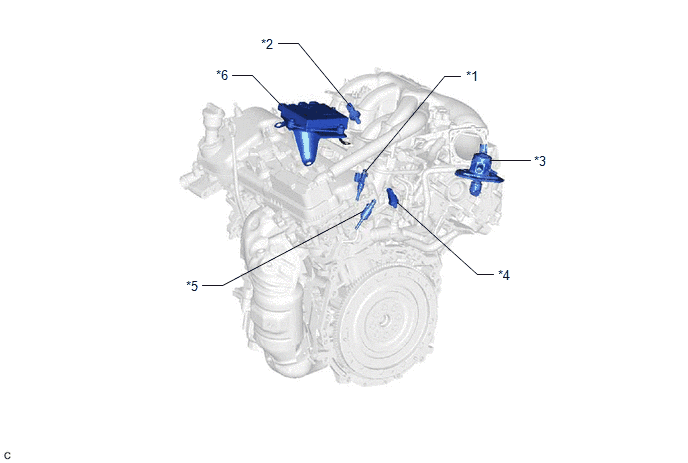

Fig 1: Fuel System Parts Location (2 Of 2)

*1	FUEL INJECTOR ASSEMBLY (for Port Injection)	*2	FUEL PRESSURE SENSOR (for Low Pressure)
*3	FUEL PUMP ASSEMBLY (for High Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	FUEL INJECTOR ASSEMBLY (for Direct Injection)	*6	INJECTOR DRIVER
