On-Vehicle Inspection [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform Inspection After Repair after repairing vacuum leaks in the intake system.

    Refer to INITIALIZATION [11/2016 - ]

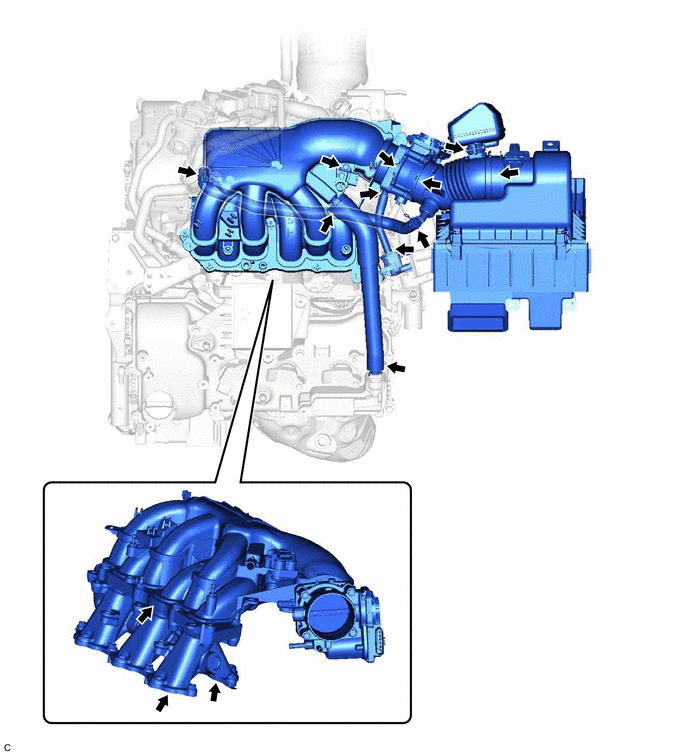

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY691178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [11/2016 - ]
