Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

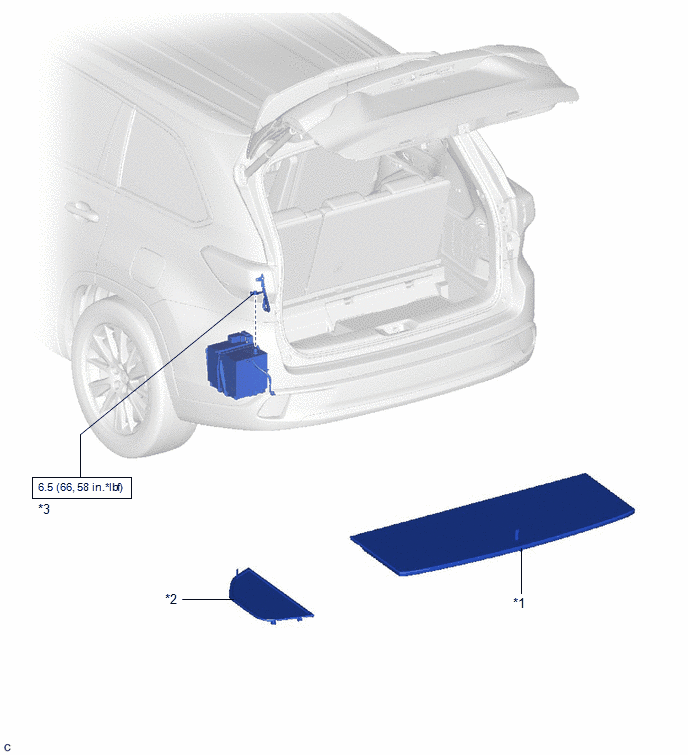

Fig 1: Injector Driver Replacement Components With Torque Specifications (1 Of 2)
GTY732732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DECK BOARD ASSEMBLY *2 NO. 3 DECK BOARD SUB-ASSEMBLY
*3 NEGATIVE AUXILIARY BATTERY TERMINAL - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

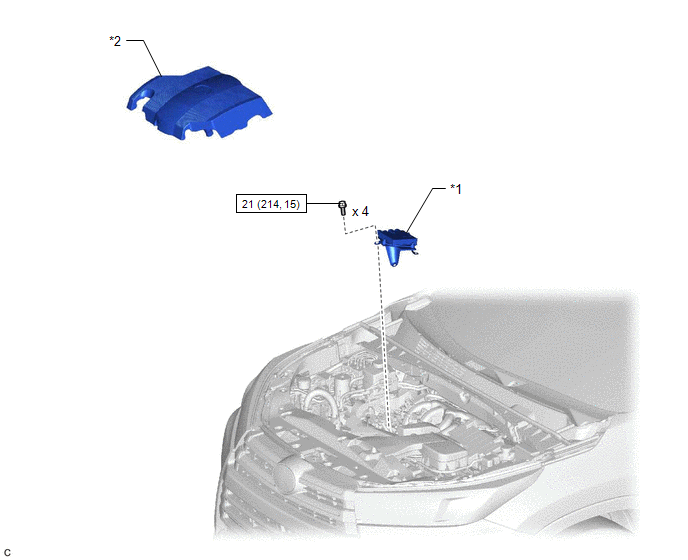

Fig 1: Injector Driver Replacement Components With Torque Specifications (2 Of 2)
GTY730987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INJECTOR DRIVER *2 V-BANK COVER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
