Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

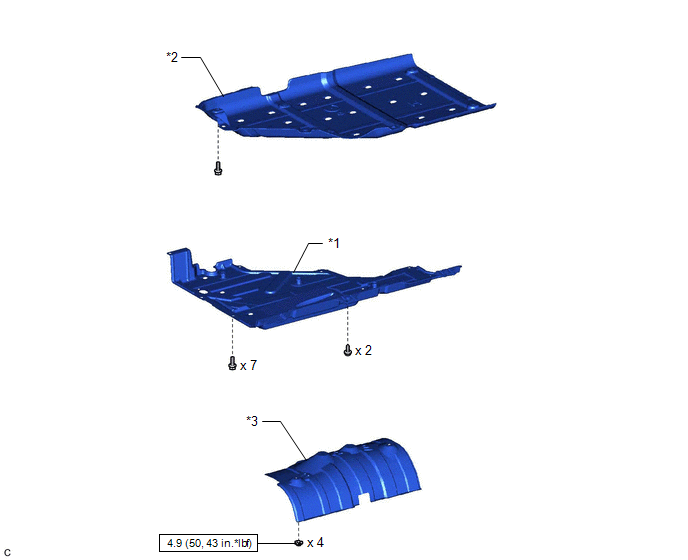

| *1 |
FRONT CENTER FLOOR COVER |
*2 |
NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
| *3 |
NO. 3 FRONT FLOOR HEAT INSULATOR |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

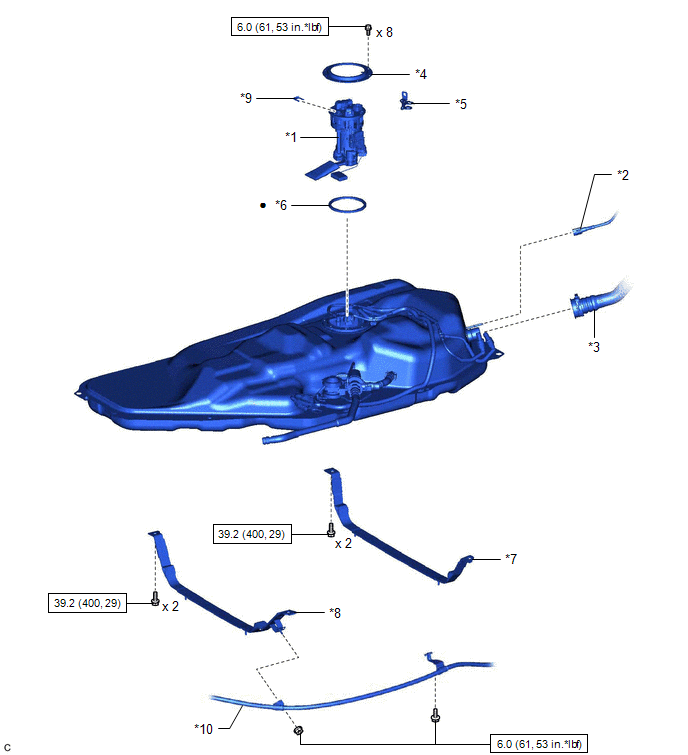

| *1 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
*2 |
FUEL TANK BREATHER ELBOW TUBE SUB-ASSEMBLY |
| *3 |
FUEL TANK TO FILLER PIPE HOSE |
*4 |
FUEL TANK VENT TUBE SET PLATE |
| *5 |
SUCTION TUBE SUPPORT PLATE |
*6 |
FUEL SUCTION TUBE SET GASKET |
| *7 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
*8 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
| *9 |
TUBE JOINT CLIP |
*10 |
NO. 3 PARKING BRAKE CABLE ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

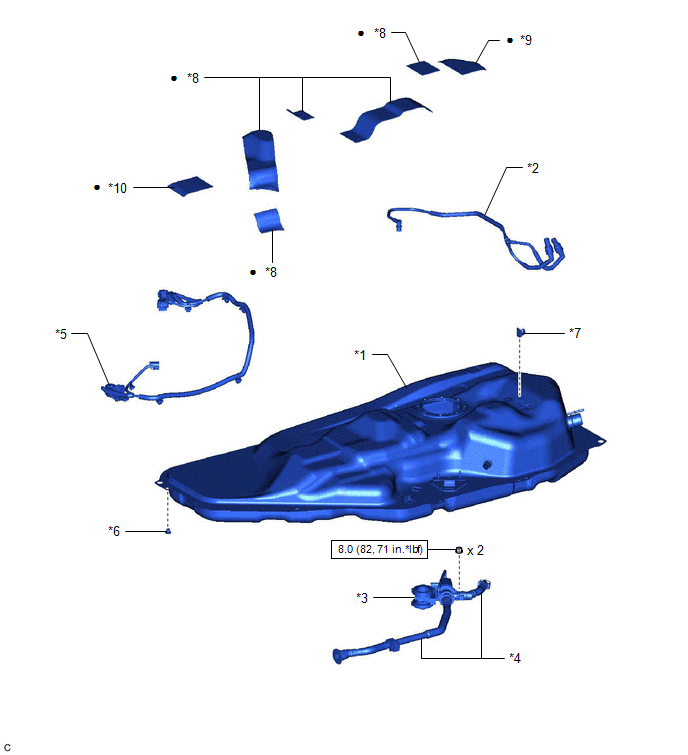

| *1 |
FUEL TANK ASSEMBLY |
*2 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 |
FUEL TANK SOLENOID MAIN VALVE ASSEMBLY |
*4 |
FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 |
FUEL TANK WIRE |
*6 |
GROMMET |
| *7 |
NO. 1 FUEL TUBE CLAMP |
*8 |
NO. 1 FUEL TANK CUSHION |
| *9 |
NO. 2 FUEL TANK CUSHION |
*10 |
NO. 3 FUEL TANK CUSHION |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
