Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the fuel sender gauge assembly connector.

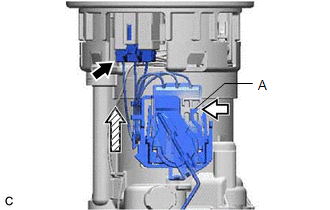

      GTY631885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Pull up
    2. Push the claw (A) of the fuel sender gauge assembly, and then pull up the fuel sender gauge assembly to remove it.
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.
