Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL SENDER GAUGE ASSEMBLY

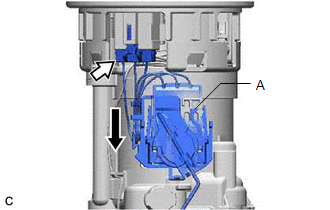

    1. Slide the fuel sender gauge assembly downward and engage the claw (A) to install the fuel sender gauge assembly.
      GTY654581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.

    2. Connect the fuel sender gauge assembly connector.
  2. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]
